119120103
Dial gauge Limit
LOGO/BOXDescription
With rotatable scale and two adjustable tolerance markers. Additional pointer, graduated in 0.2 mm up to a full mm. Aluminium body. Replaceable measuring tip. Without mounting lug. Tolerance according to DIN 878.
Attributes
| ETIM class code | EC003591 |
| Measurement range, total | 1 mm |
| Diameter, dial | 58 mm |
| One pointer turn = | 0.2 mm |
| Securing pin diameter | 8 mm |

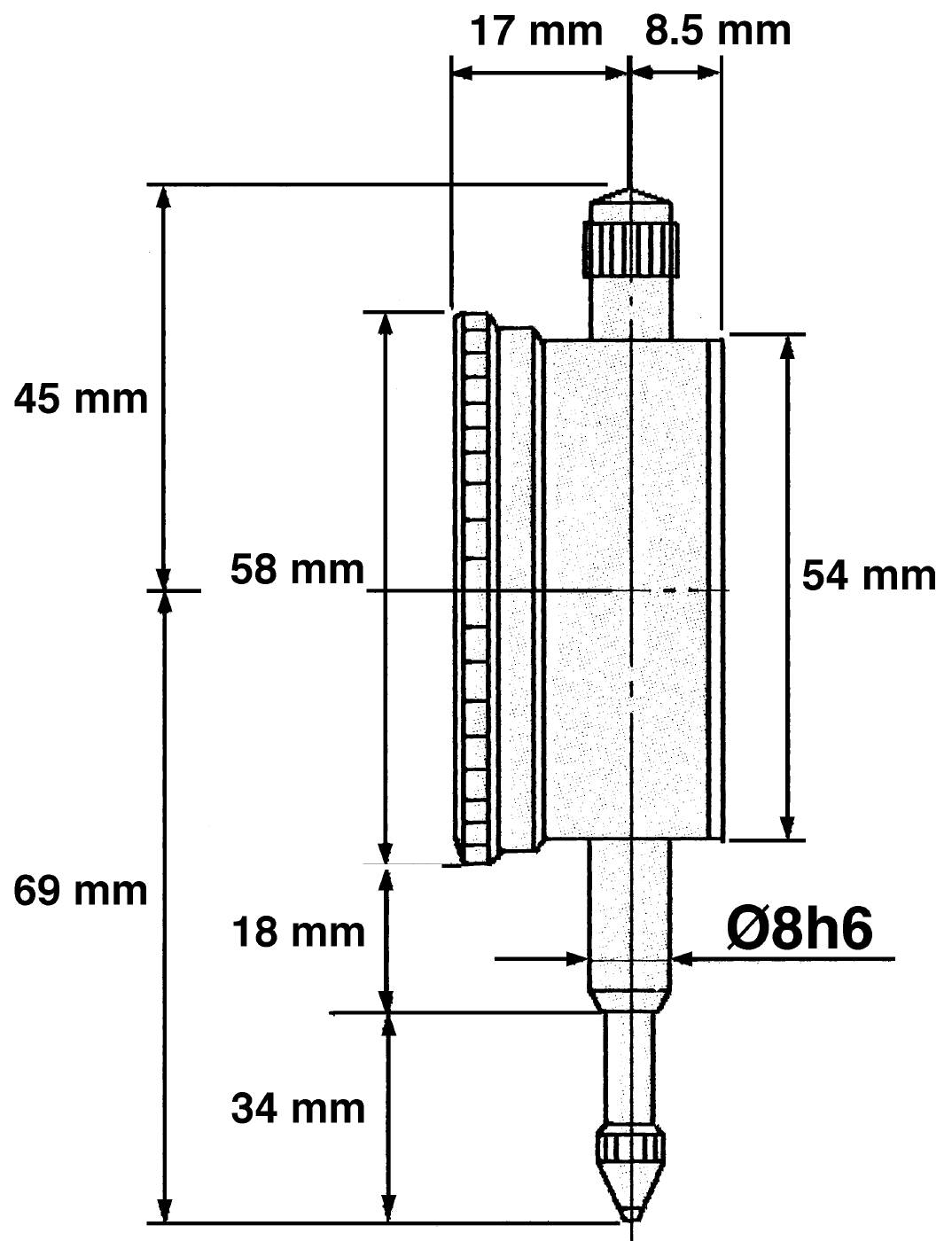

| Dimension A | 45 mm |
| Dimension B | 69 mm |
| Dimension D | 17 mm |
| Dimension F | 18 mm |
| Dimension G | 34 mm |
| Dimension H | 54 mm |
| Dimension J | 8.5 mm |
| Measuring scale graduation | 0.001 mm |
| Measurement units | mm |
| Scale graduation | 0-100, 100-0 |
| Design | Analogue |
Article information
| Base unit | PCS |
|---|---|
| Contents (Per base unit) | 1 PCS á 1 ST |
| Minimum order quantity | 1 PCS |
| Currency | SEK |
| GTIN/EAN | 7311661192328 |
