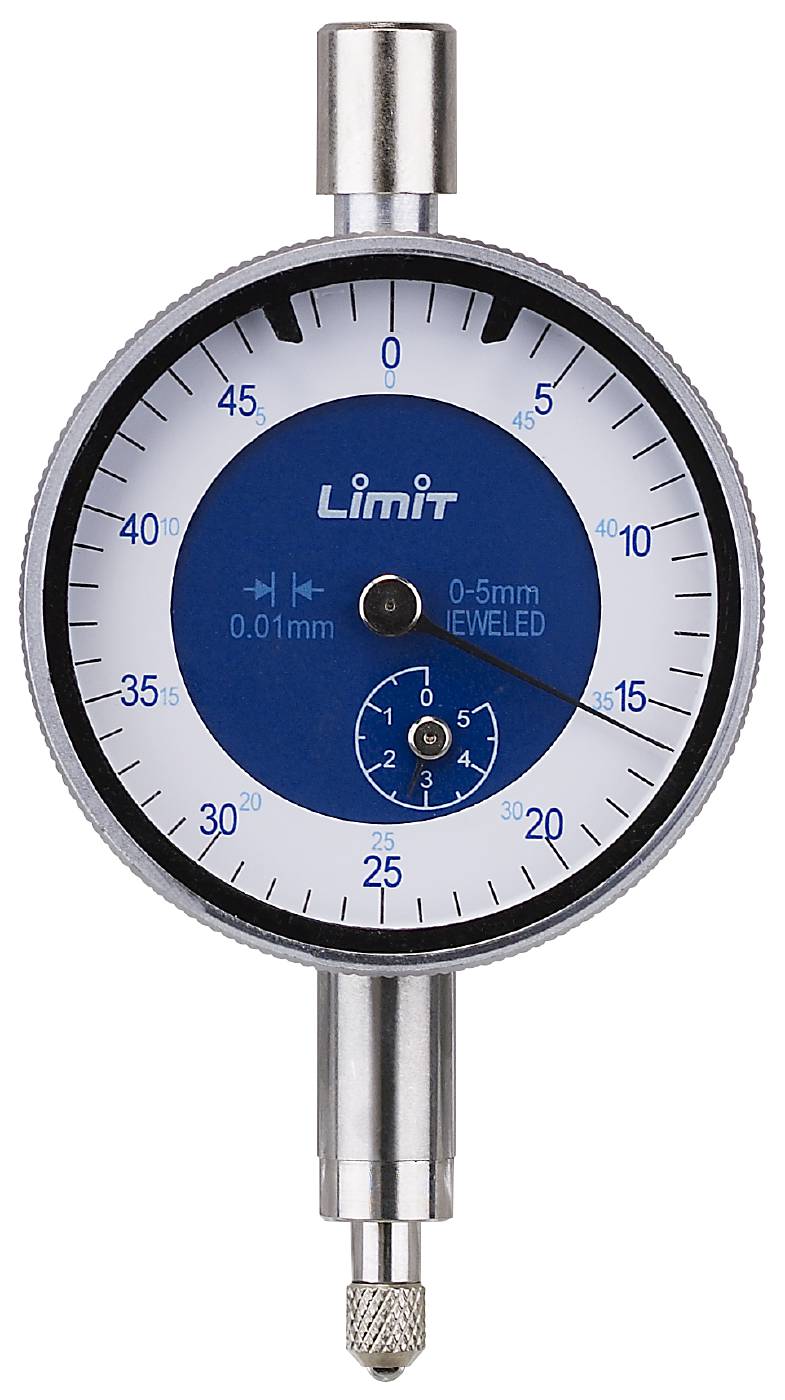

Dial indicator Mini Limit
DIAL INDICATOR LIMITDescription
Mini dial gauge. With turnable scale. Extra pointer that shows whole mm. Replaceable measuring tip. Without mounting lug. Tolerance according to DIN 878.
Attributes
| ETIM class code | EC003591 |
| Measurement range, total | 5 mm |
| Diameter, dial | 40 mm |
| One pointer turn = | 0.5 mm |
| Securing pin diameter | 8 mm |

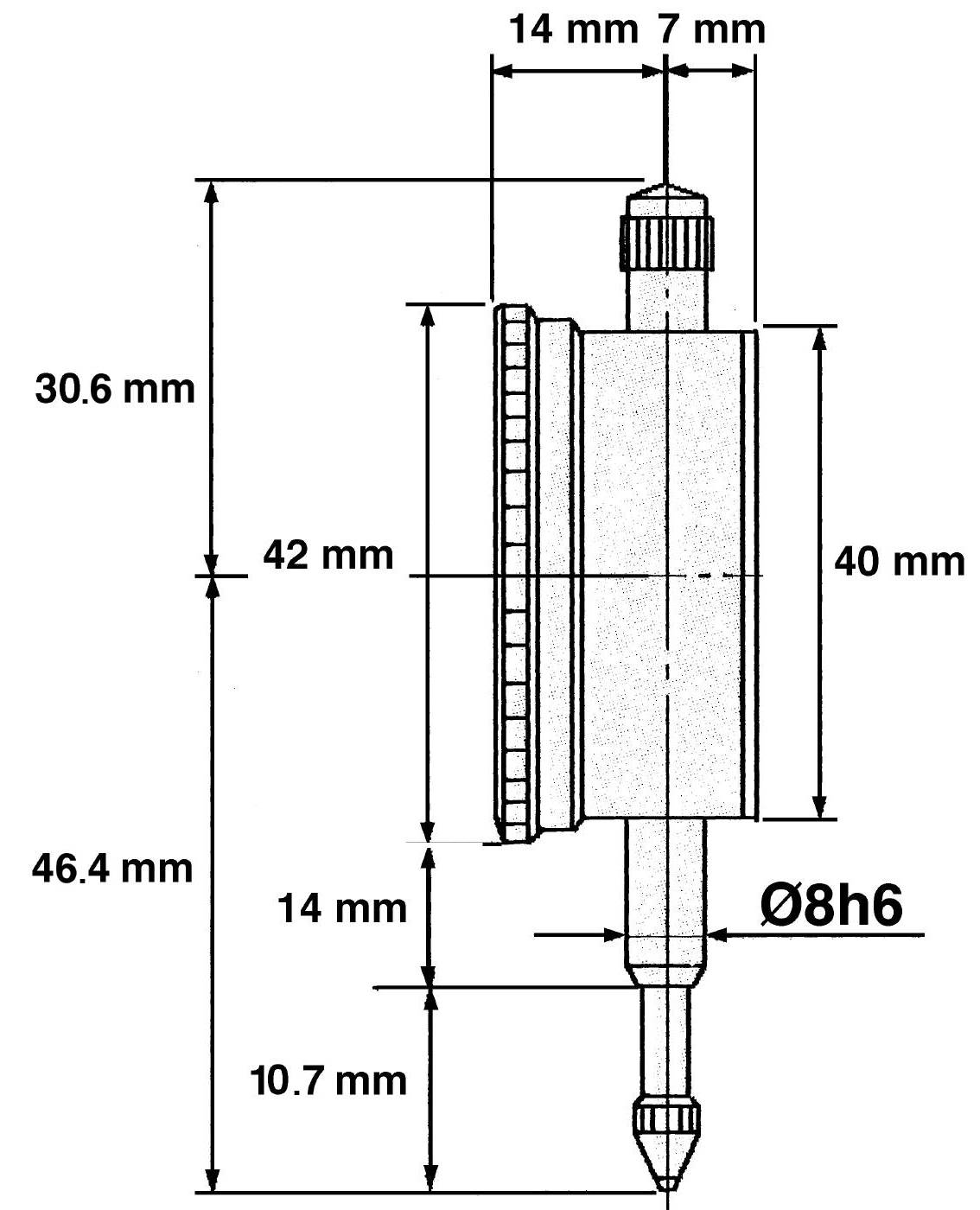

| Dimension A | 38 mm |
| Dimension B | 48 mm |
| Dimension D | 14 mm |
| Dimension F | 14 mm |
| Dimension G | 13 mm |
| Dimension H | 40 mm |
| Dimension J | 7 mm |
| Measuring scale graduation | 0.01 mm |
| Measurement units | mm |
| Scale | 0-50 50-0 |
| Scale graduation | 0-50, 50-0 |
| Design | Analogue |
Article information
| Base unit | PCS |
|---|---|
| Contents (Per base unit) | 1 PCS รก 1 ST |
| Minimum order quantity | 1 PCS |
| GTIN/EAN | 7311661039135 |
