43970201
Dial indicator Limit
DIAL GAUGE 10/0,01MMDescription
In impact resistant design. With turnable scale and two adjustable tolerance indexes. Extra pointer that shows whole mm. Casing of heavy duty plastic. Replaceable measuring tip. Without mounting lug (cannot be fitted with mounting lug). Tolerance according to DIN 878.
Attributes
| ETIM class code | EC003591 |
| Measurement range, total | 10 mm |
| Diameter, dial | 58 mm |
| One pointer turn = | 1 mm |
| Securing pin diameter | 8 mm |

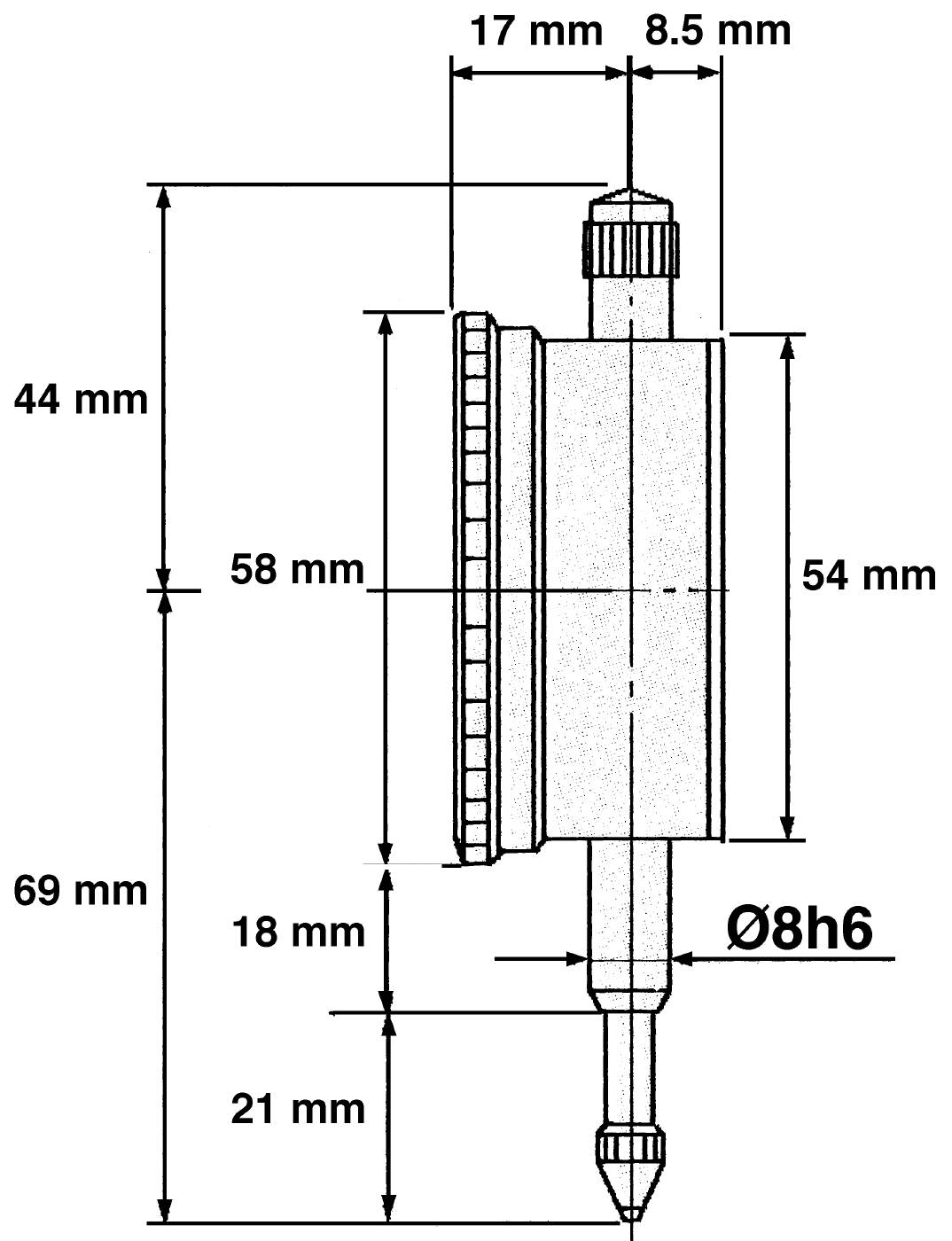

| Dimension A | 44 mm |
| Dimension B | 69 mm |
| Dimension D | 17 mm |
| Dimension F | 18 mm |
| Dimension G | 21 mm |
| Dimension H | 54 mm |
| Dimension J | 8.5 mm |
| Measuring scale graduation | 0.01 mm |
| Measurement units | mm |
| Scale | 0-100 100-0 |
| Design | Analogue |
Article information
| Base unit | PCS |
|---|---|
| Contents (Per base unit) | 1 PCS á 1 ST |
| Minimum order quantity | 1 PCS |
| Currency | SEK |
| GTIN/EAN | 7311664397010 |
