Multi cross line laser Limit 1180-G
MULTI CROSS LINE LASER LIMIT 1180-GProduct benefits
- Up to 4 times better visibility than red laser
- High work efficiency with 3x360° lines lit togehter or indvidually
- Self-leveling that can be swithed off, pulsating light for laser receiver up to 50 meters
- Switch and pendulum lock in one for safe movements
- Rechargeable battery with longer operating time
Description

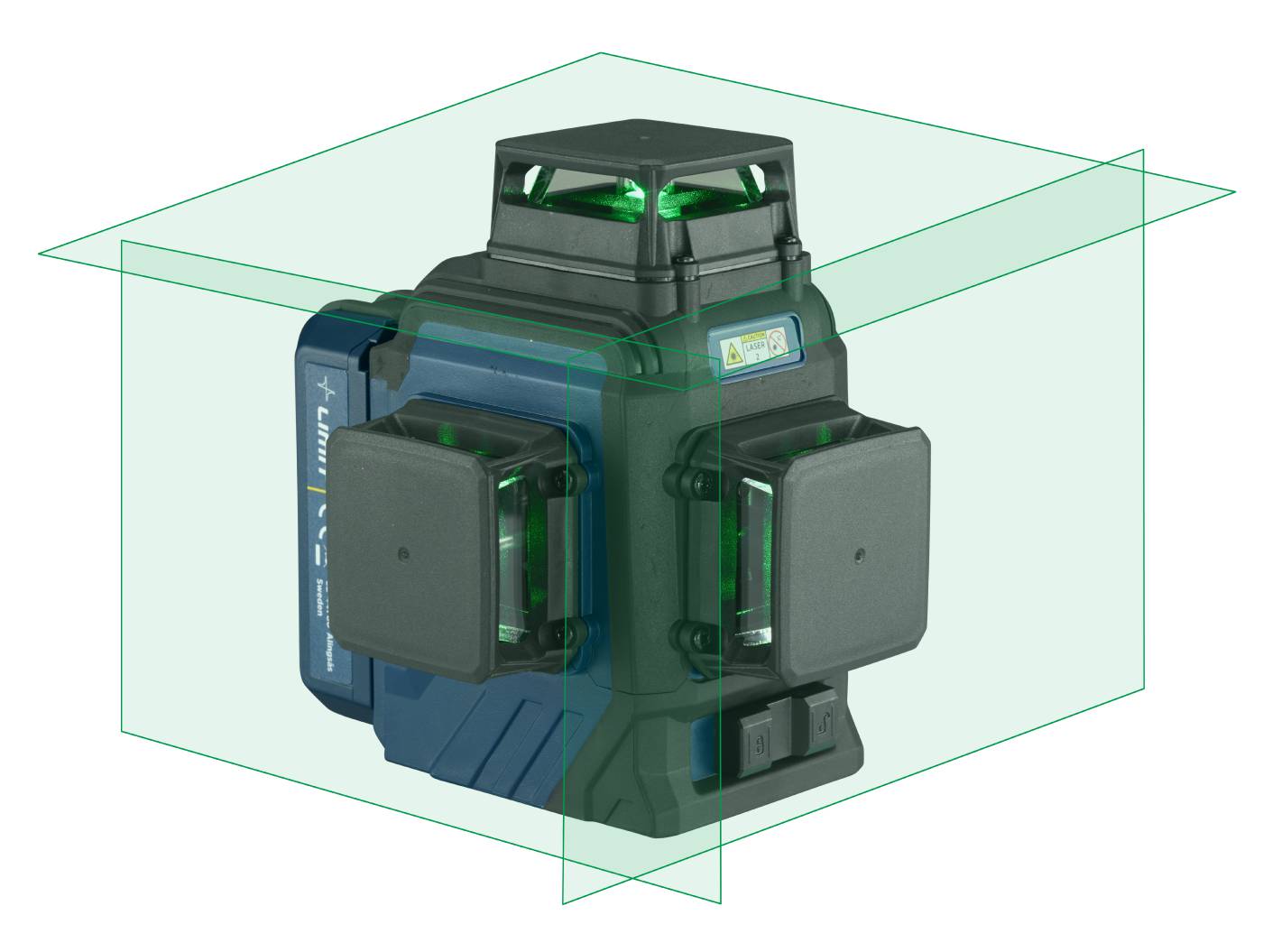

Multi cross line laser with green laser light that shows 3 very bright 360° lines. One horizontal 360° line and two vertical 360° lines that are lit at 90° to each other. The lines can be lit individually or together. Laser with green light offers 4 times more visibility compared with red laser light, making it ideal for use in bright environment and/or over long distances. The laser is self-levelling, it warns with sound and lines flash when the incline exceeds the self-levelling range. Self-levelling can be switched off when you want to show an inclined plane by mechanically locking the pendulum mechanism, which functions as both a main circuit breaker and a transport lock. Limit 1180 also features a pulsating light for use in bright room together with a separate laser receiver 24465-2517 (not included).

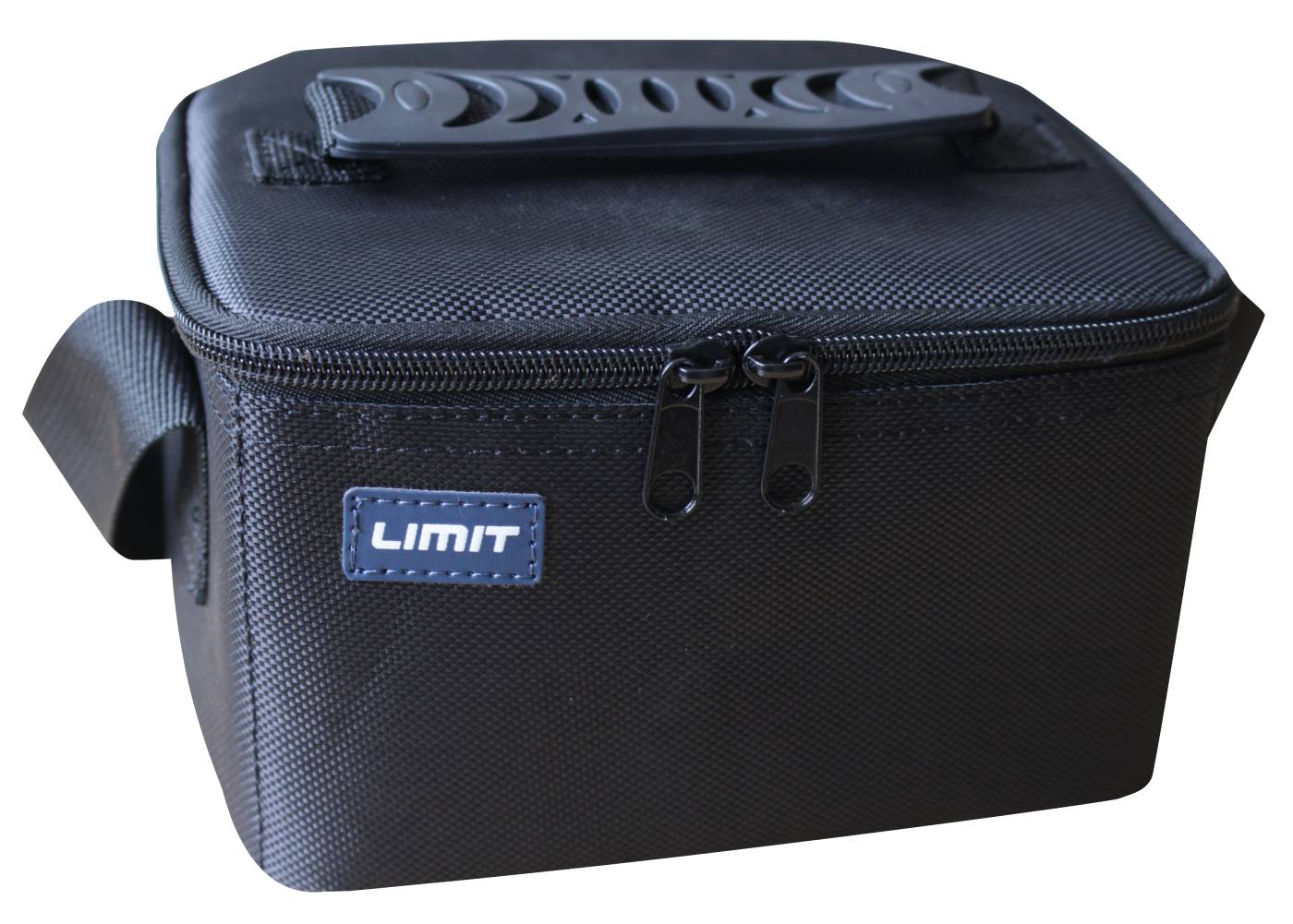

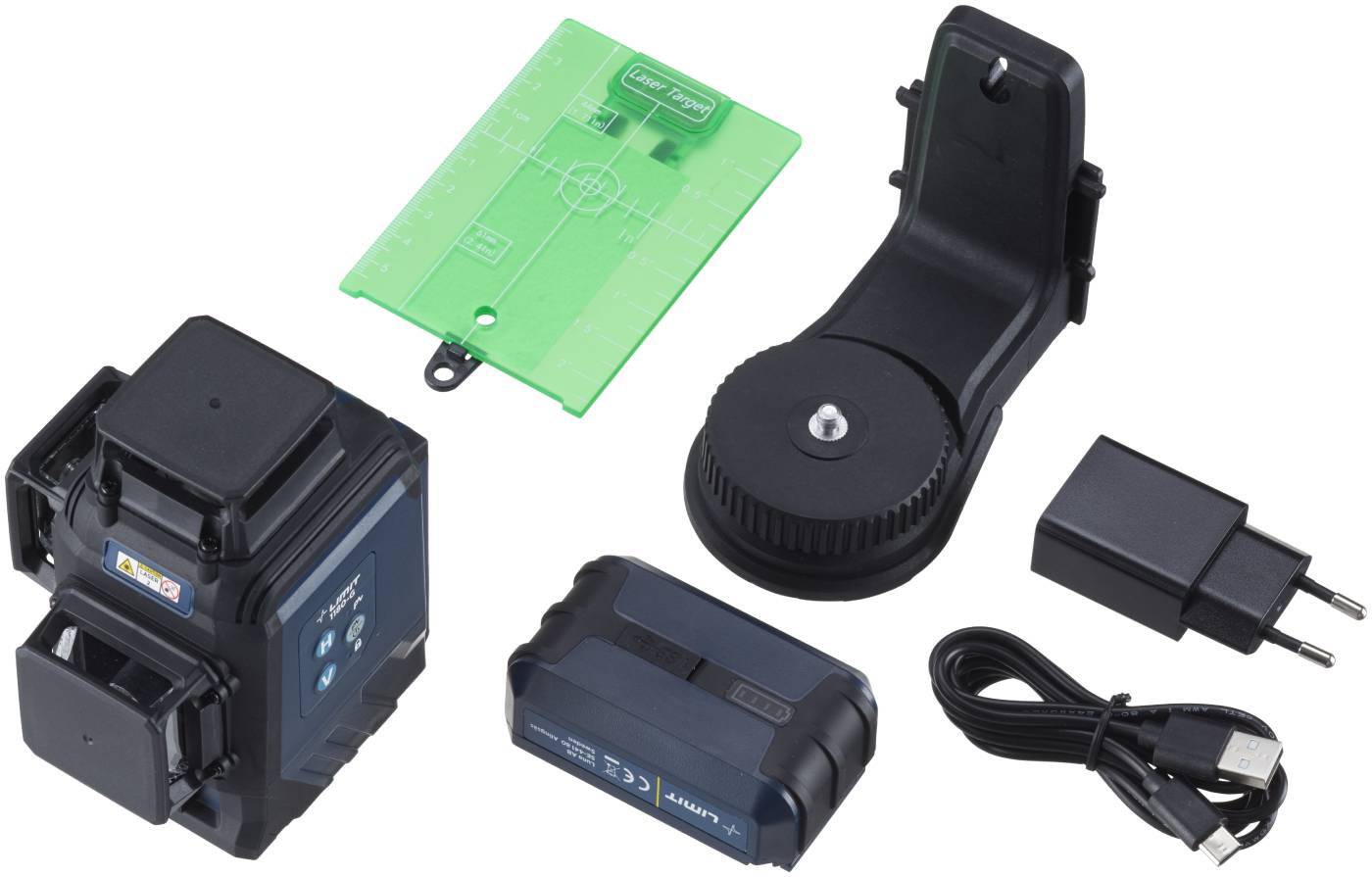

Powered by an rechargeable Li-ion battery. Supplied with rechargable battery and charger with USB cable, magnetic wall bracket and reflective target in a protective case.
Adapter 244652418 is needed for accessories 181120106, 200570109, 178650800, 178680104 & 178690103.
Attributes
| ETIM class code | EC000641 |
| Manufacturer´s description | 1180-G |
| Inaccuracy, line | ±3mm/10m |
| Work range with receiver | 50 m |
| Work Temperature, min | -10 °C |
| Work Temperature, max | 50 °C |
| Operating time | 8 h |
| Laser diode | 520 Nm |
| Threaded mount | 1/4 tum |
| Enclosure class IP | IP54 |
| Laser class | 2, < 1 mW |
| Laser type | Cross line laser |
| Levelling range | ±3 ° |
| Support | No |
| Visibility (depending on lighting conditions) | 30 m |
| No. of batteries | 1 pcs |
| Battery | 5200 mAh |
| Battery size | 3.7 V / 3.2 Ah |
| Battery type | Li-ion |
| Width | 90 mm |
| Depth | 125 mm |
| Height | 125 mm |
| Weight | 0.545 kg |
Article information
| Base unit | |
|---|---|
| Contents (Per base unit) | 1 á 1 SET |
| Minimum order quantity | 1 |
| Currency | SEK |
| GTIN/EAN | 7311662259464 |
- Articles
- Specifications
- Compare Articles
- Documents
- Accessories
- Similar Products
| Item no. | Description | Pack | Contents |
|---|---|---|---|
| 244650404 | MULTI CROSS LINE LASER LIMIT 1180-G | ||
| GTIN: 7311662259464 | 1 | ||
