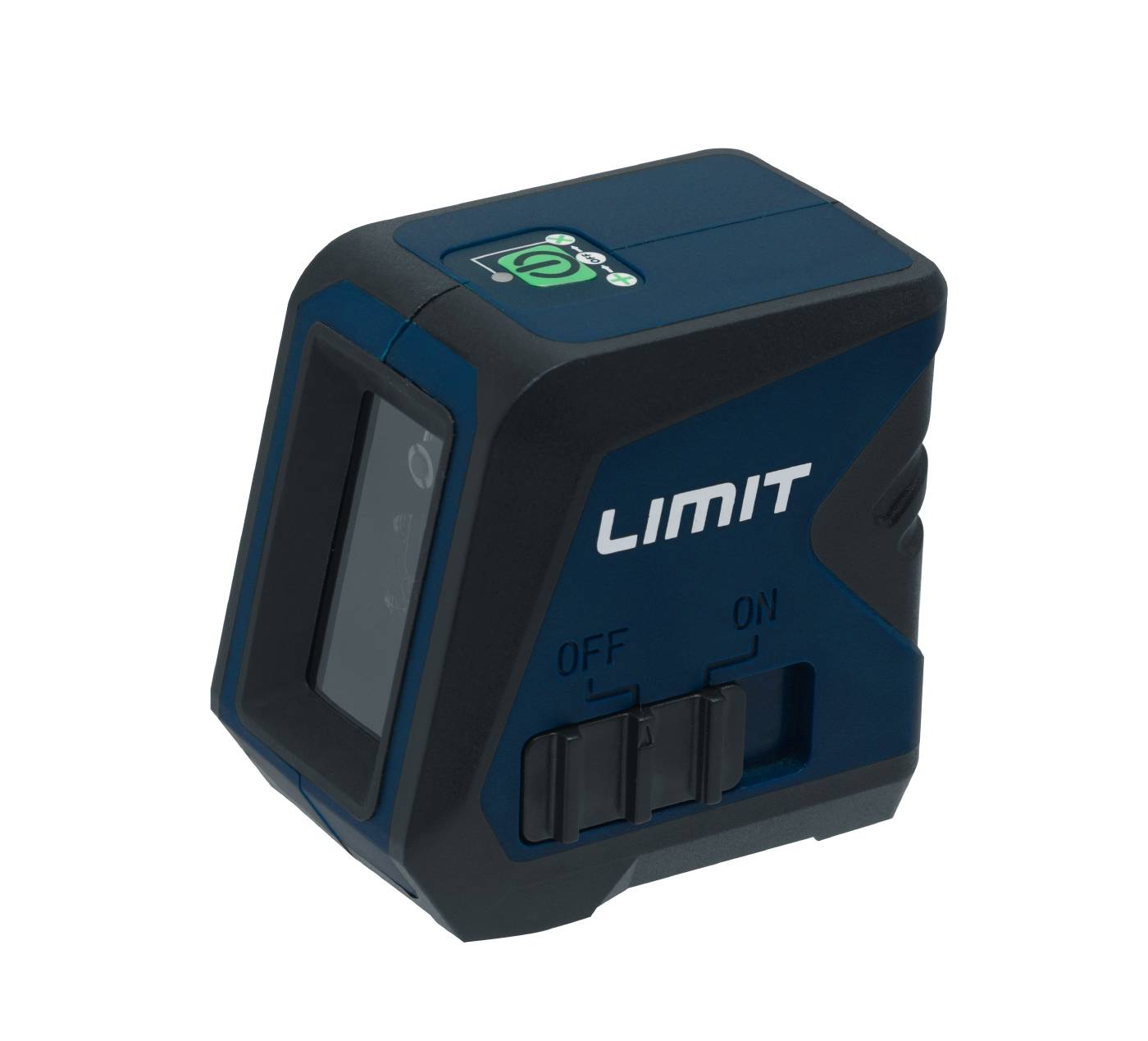

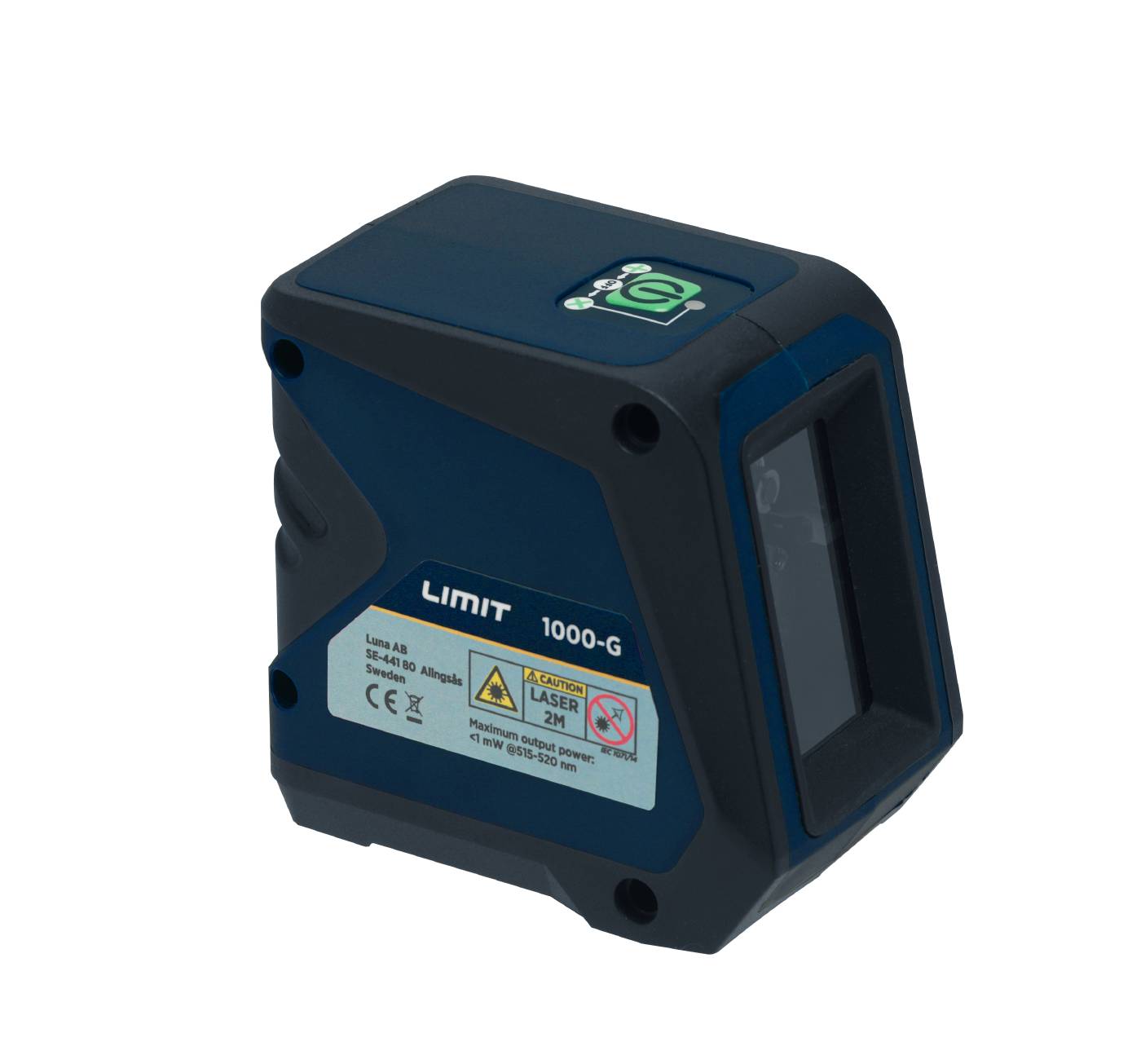

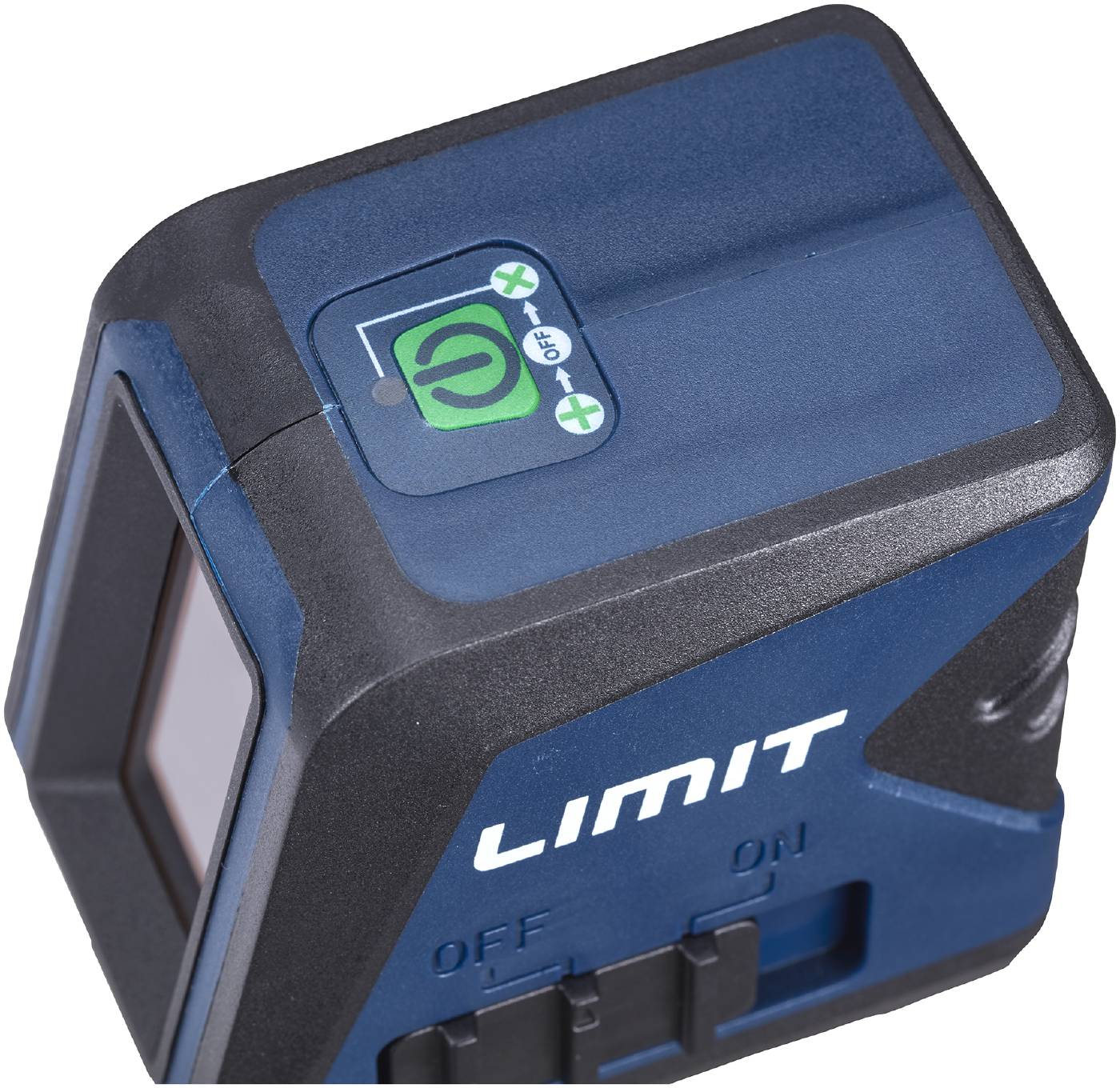

Cross line laser Limit Cube 1000-G

CROSSLINE LASER LIMIT 1000-G

Description

Compact and lightweight green cross line laser with a horizontal and a vertical line. Self-levelling with magnetic damping compensator. Alternatively, self-levelling can be disconnected to show a sloping line. Mechanical locking of the pendulum acts both as a main switch and transport lock. Two laser diodes class 2M (For hanging pictures and installing shelves, kitchen frames, tiles or stairs and similar items indoors.) Supplied in a soft case with 2x AA batteries. Adapter 181120205 may be needed for accessories 181120106, 200570109, 178680104 and 178690103.

Attributes

ETIM class codeEC000641
Manufacturer´s descriptionLimit 1000-G
Inaccuracy, line± 3 mm/10 m
Work range with receiver40 m
Work Temperature, min-10 °C
Work Temperature, max45 °C
Operating time13 h
Laser diode515 Nm
Threaded mount1/4 tum
Enclosure class IPIP54
Laser class2M <1 mW
Laser typeCross line laser
Levelling range± 3 °
Visibility (depending on lighting conditions)10- 15 m
No. of batteries2 pcs
Battery typeAlkaline
Battery type ANSIAA
Width71 mm
Depth47 mm
Height66 mm
Weight190 g

Article information

Base unitPCS
Contents (Per base unit)1 PCS á 1 ST
Minimum order quantity1 PCS
CurrencySEK
GTIN/EAN7311662227920
