Cross line laser Limit 1101-G
CROSS LINE LASER LIMIT 1101 GProduct benefits
- Up to 4 times better visibility than red laser
- High work efficiency with 2x360° lines lit togehter or indvidually
- Self-leveling that can be swithed off, pulsating light for laser receiver up to 50 meters
- Switch and pendulum lock in one for safe movements
- Rechargeable battery up to 20 hours operating time
Description

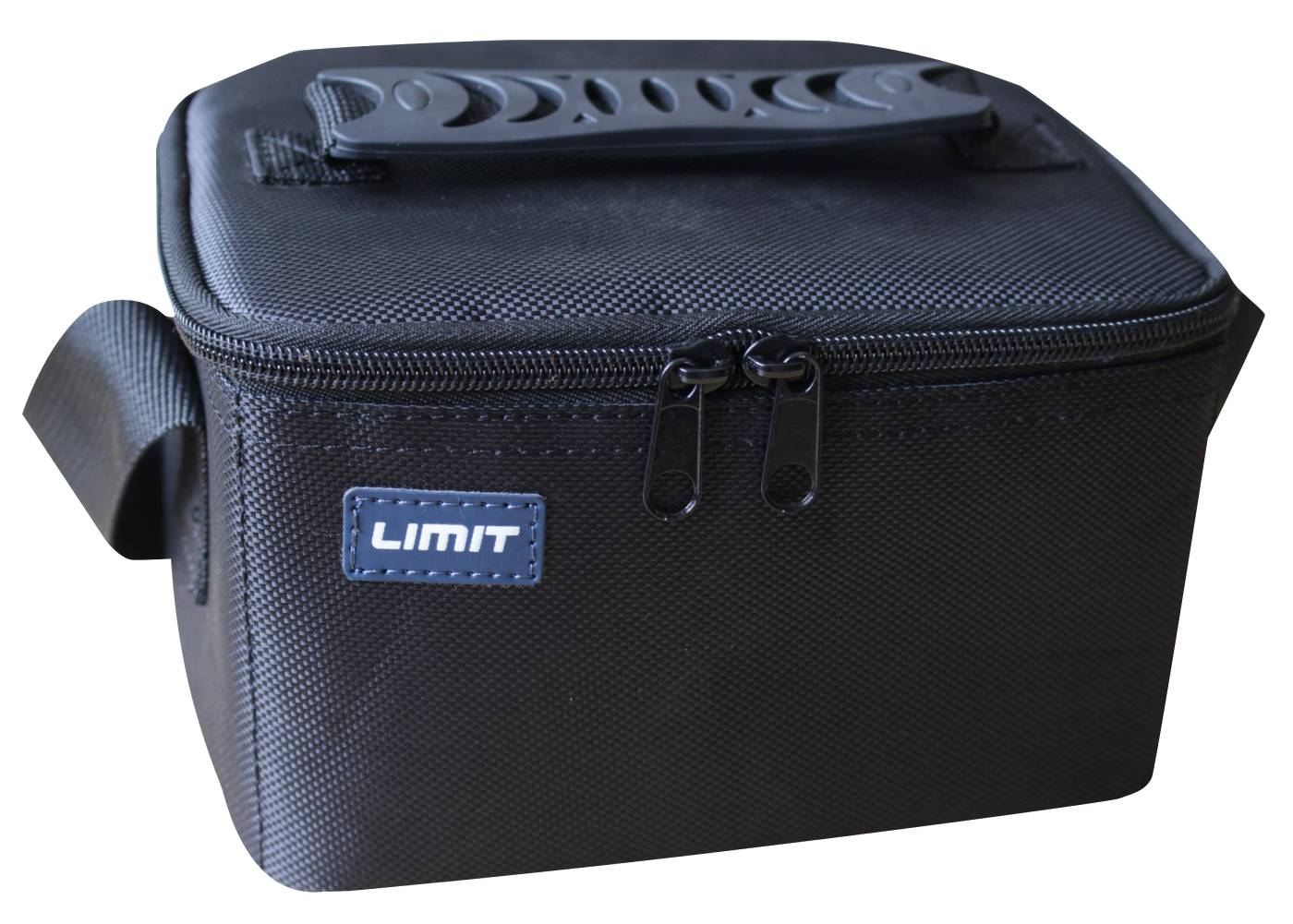

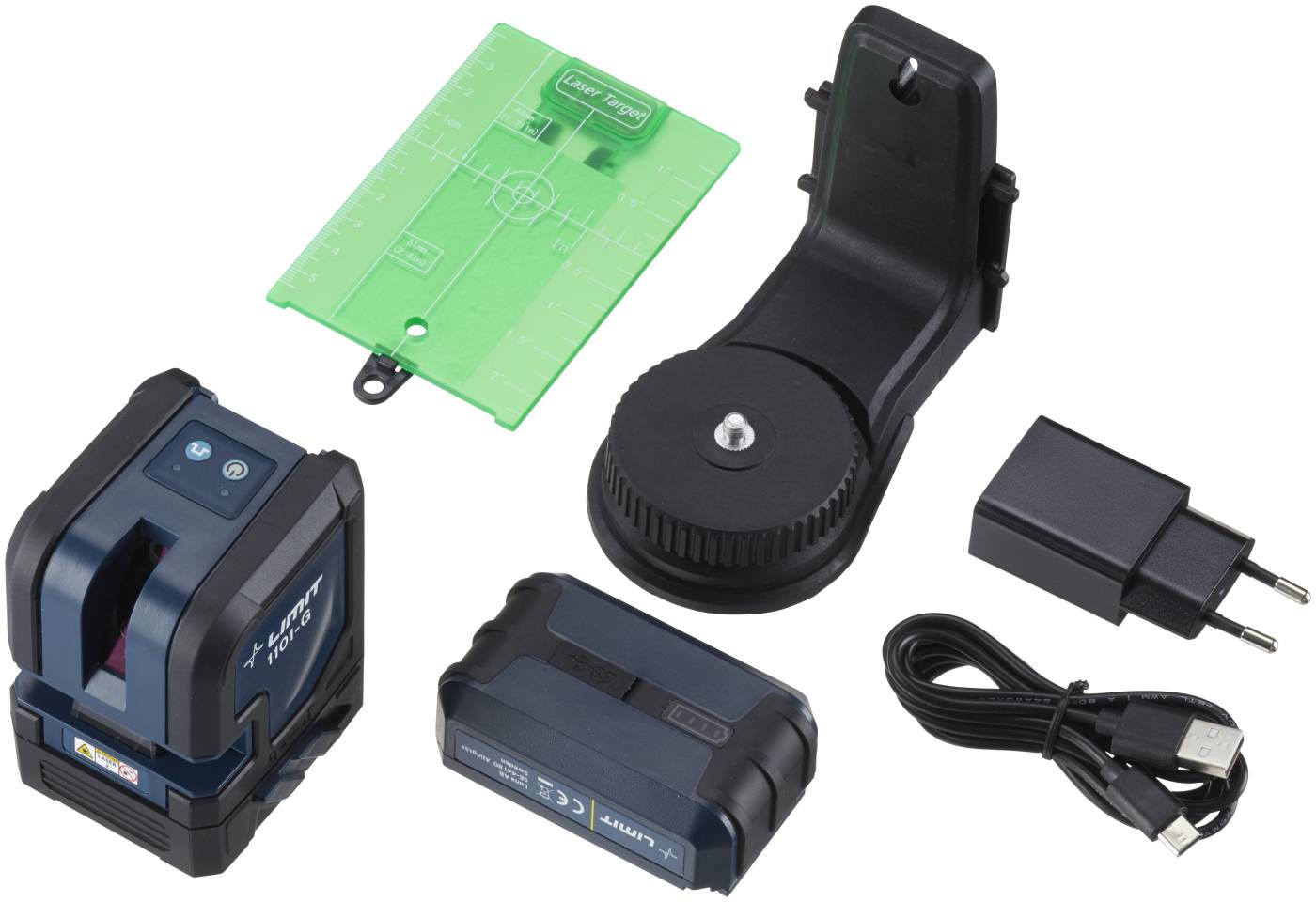

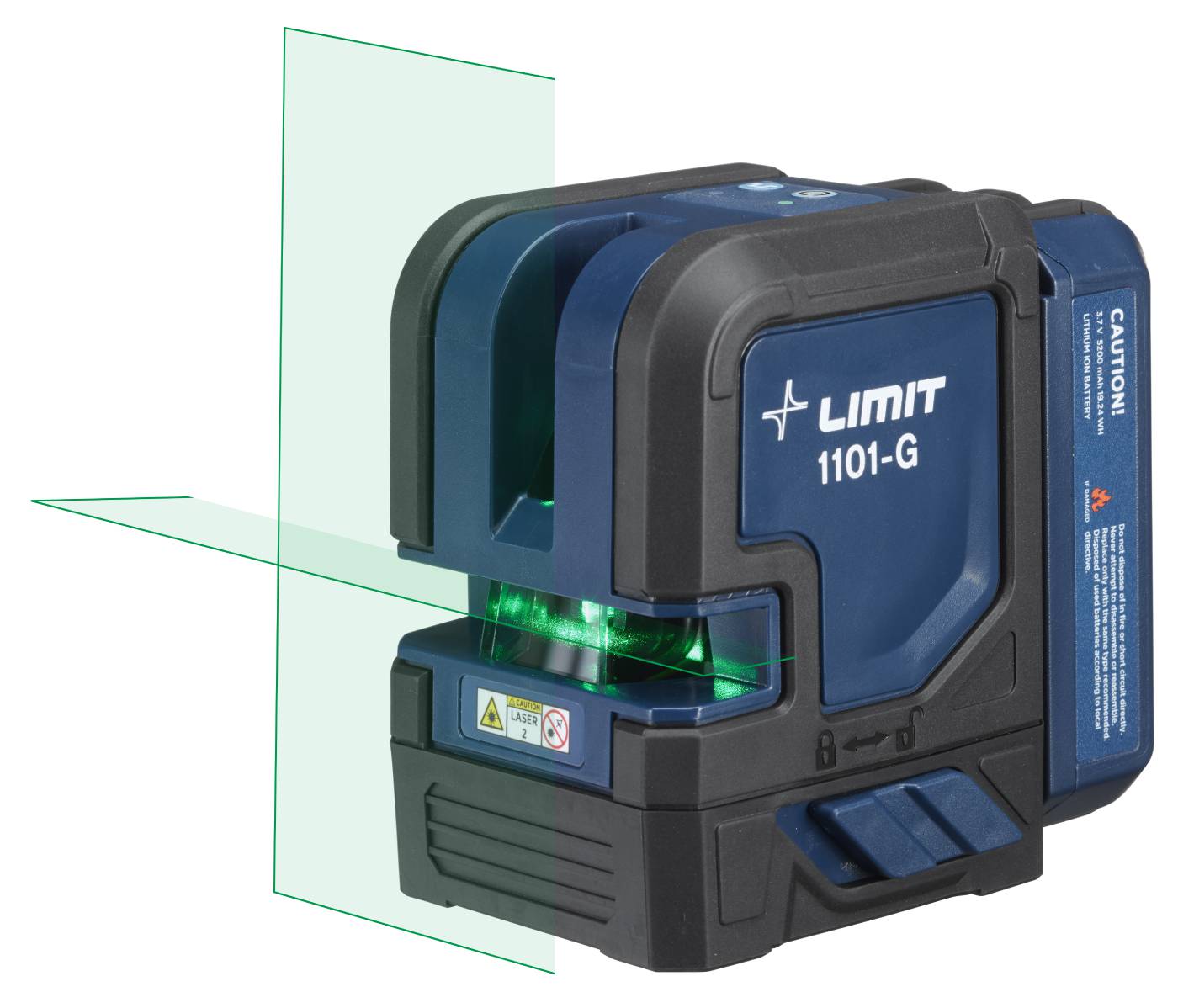

Cross line laser with very bright green laser light that provides a horizontal and a vertical line which runs 120 degrees up to the ceiling. Self-levelling function warns with flashing lines when the incline exceeds the self-levelling range. Alternatively, self-levelling can be disconnected to show a sloping line. Mechanical locking of the pendulum acts both as a main switch and transport lock. 2 laser diodes class 2, <1mw 635 nm. Can be used in bright rooms with a separate laser receiver 244652517 (not included) for up to 50 meters. Supplied with rechargeable battery with charger and USB cable, magnetic wall bracket and reflective target plate in a soft case.
Adapter 244652418 may be needed for accessories 181120106, 200570109, 178650800, 178680104 & 178690103.
Attributes
| ETIM class code | EC000641 |
| Manufacturer´s description | 1101-G |
| Inaccuracy, line | ±3mm/10m |
| Work range with receiver | 50 m |
| Work Temperature, min | -10 °C |
| Work Temperature, max | 50 °C |
| Operating time | 13 h |
| Laser diode | 520 Nm |
| Threaded mount | 1/4 tum |
| Enclosure class IP | IP54 |
| Laser class | 2, < 1 mW |
| Laser type | Cross line laser |
| Levelling range | 3 ± 1 ° |
| Visibility (depending on lighting conditions) | 30 m |
| No. of batteries | 1 pcs |
| Battery size | 3.7 V / 3.2 Ah |
| Battery type | Li-ion |
| Width | 60 mm |
| Depth | 90 mm |
| Height | 95 mm |
| Weight | 0.403 kg |
Article information
| Base unit | |
|---|---|
| Contents (Per base unit) | 1 á 1 SET |
| Minimum order quantity | 1 |
| Currency | SEK |
| GTIN/EAN | 7311662259532 |
