191050103

Multimeter Kyoritsu 2012R

MULTIMETER KM 2012R

Description

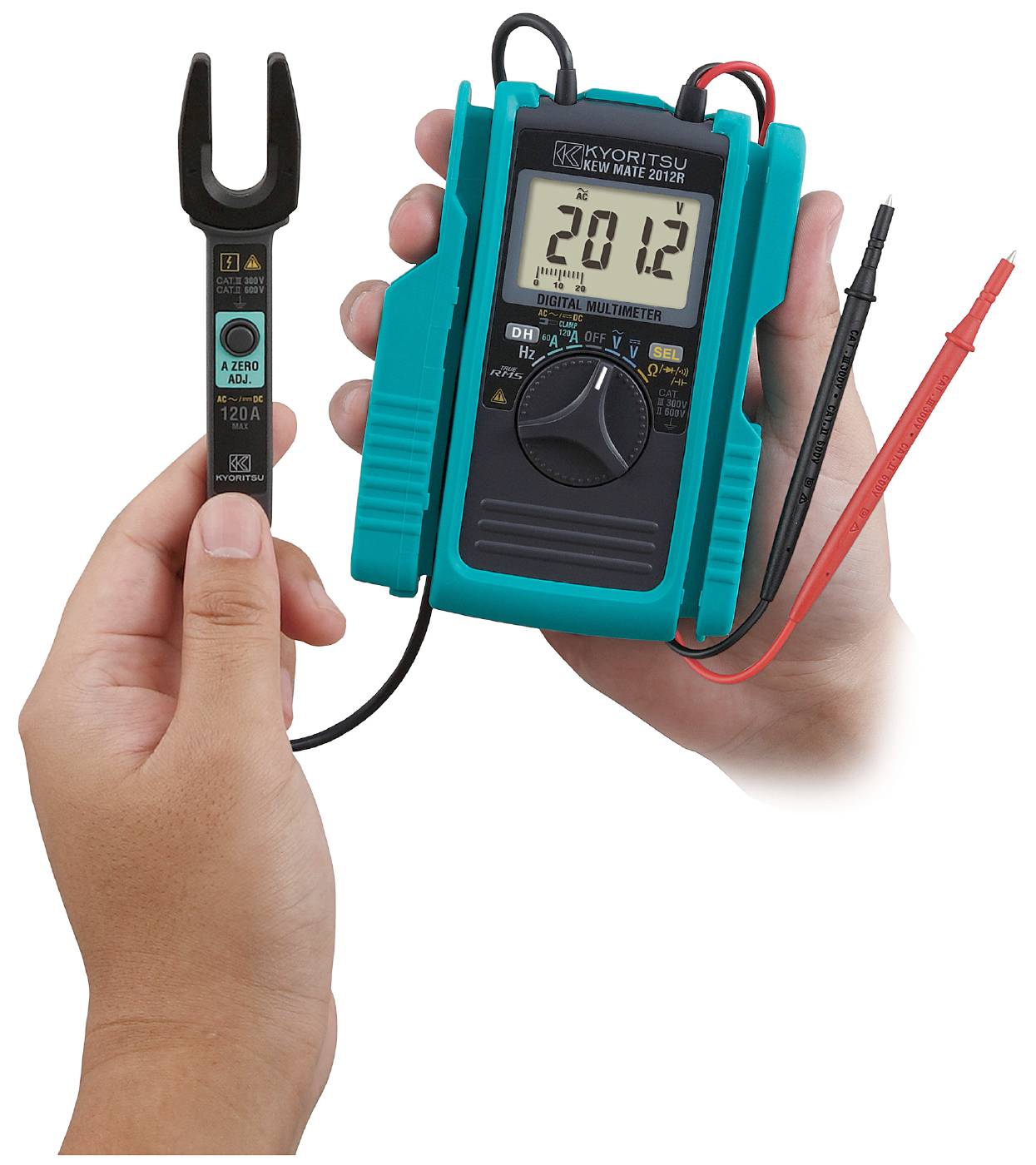

Versatile multimeter with open clamp in handy pocket format. Function with ”True RMS” sensing, automatic DC zero adjustment, and equipped with a pair of pliers that measure up to 120A AC/DC.

The instrument has an easy to read display with analogue bargraph. Measures voltage, current, resistance, continuity and frequency. Equipped with automatic range selection, data hold and auto shut-off.

A large protective cover included for storing the instrument, test leads and current clamp.

Supplied complete with protective cover, test cables, batteries and user guide.

Conforms to IEC 61010-1 CAT III 300V.

Attributes

ETIM class code	EC000069
Manufacturer´s description	2012R
Voltage measurement range (AC) min	0 V
Voltage measurement range (AC) max	600 V
Current measurement range (AC), min	0.01 A
Current measurement range (AC), max	120 A
Voltage measurement range (DC) min	0 V
Voltage measurement range (DC) max	600 V
Current measurement range (DC), min	0.01 A
Current measurement range (DC), max	120 A
Frequency measurement range, min	0 Hz
Frequency measurement range, max	10 MHz
Capacitance measurement range, min	0 µF
Capacitance measurement range, max	4000 µF
Length	126 mm
Resistance measurement range, min	0 Ω
Resistance measurement range, max	60 MΩ
Thickness	21 mm
Background lit Display	Yes
Max display	5999
Safety classification	CAT III 300 V
True RMS measurement	Yes
No. of batteries	2 pcs
Battery type	Alkaline
Battery type ANSI	AAA
Width	87 mm
Weight	210 g

Article information

Base unit	PCS
Contents (Per base unit)	1 PCS á 1 ST
Minimum order quantity	1 PCS
Currency	SEK
GTIN/EAN	5706445250967
