191040104

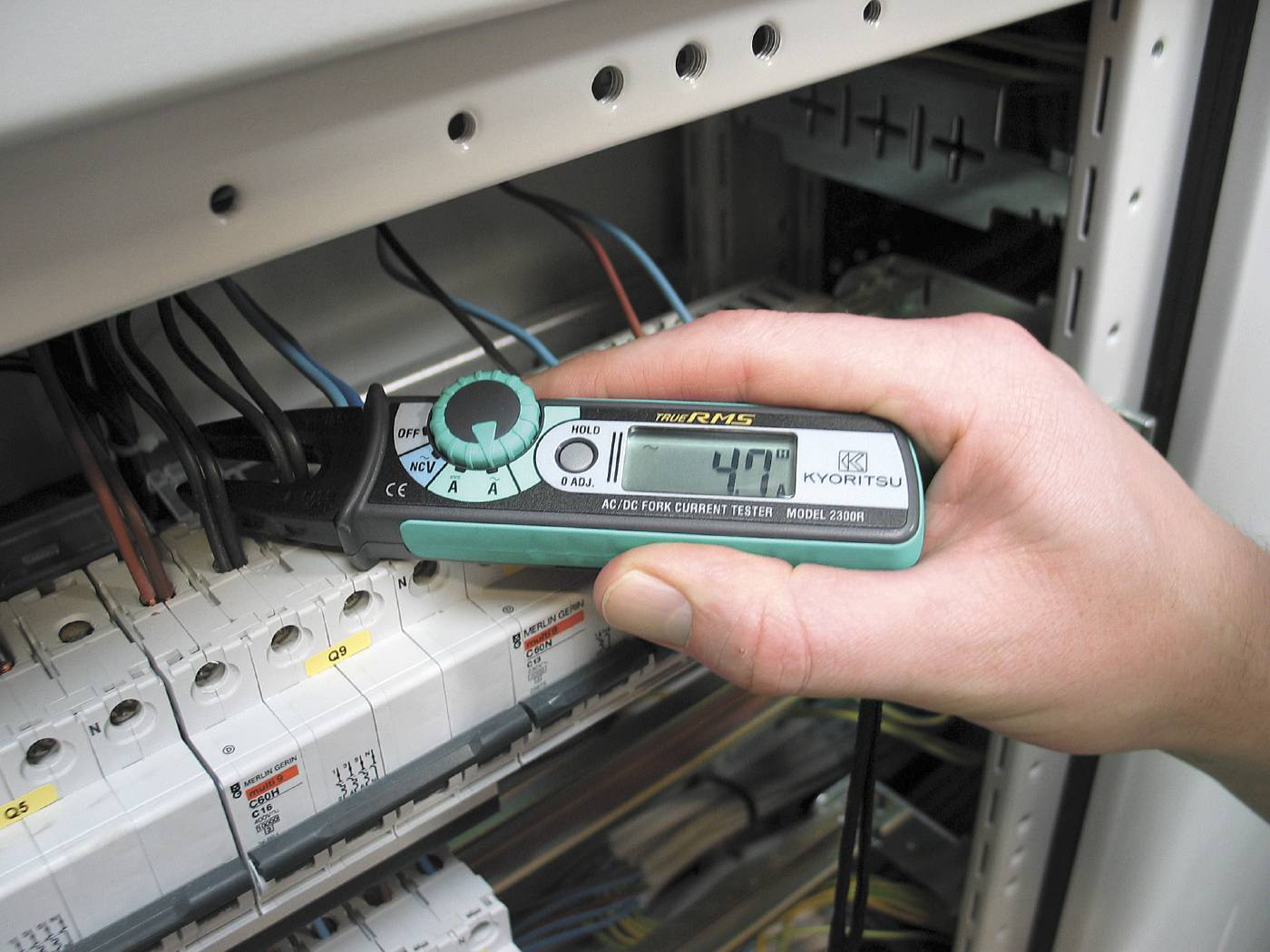

Clip-on ammeter Kyoritsu 2300R
MINIAMMETER 2300RDescription
Digital mini clip-on ammeter in practical pocket format. Measures AC/DC with "True RMS" up to 100A and is equipped with data hold, auto shut-off, auto zero adjustment, and non-contact voltage indicator. The voltage indicator emits an acoustic tone when the pliers approach a signal where the voltage exceeds approx. 80V.
Due to the narrow jaw, the instrument can be used anywhere, e.g. in distribution boards where the leads are very tight.
Supplied complete in a case incl. batteries and manual.
Conforms to IEC 61010-1 CAT III 300V.
Attributes
| ETIM class code | EC000494 |
| Manufacturer´s description | 2300R |
| Voltage inaccuracy (AC) | ±2% (+5 digits) |
| Current measurement range (AC), min | 0.1 A |
| Current measurement range (AC), max | 100 A |
| Current resolution (AC) | 0.1 mA |
| Voltage inaccuracy (DC) | ±2% (+5 digits) |
| Current measurement range (DC), min | 0.1 A |
| Current measurement range (DC), max | 100 A |
| Current resolution (DC) | 0.1 mA |
| Gap opening | 10 mm |
| Length | 161 mm |
| Thickness | 31 mm |
| Max display | 1049 |
| Safety classification | CAT III 300 V |
| No. of batteries | 2 pcs |
| Battery type | Alkaline |
| Battery type IEC | LR44 |
| Width | 40 mm |
| Weight | 110 g |
Article information
| Base unit | PCS |
|---|---|
| Contents (Per base unit) | 1 PCS á 1 ST |
| Minimum order quantity | 1 PCS |
| Currency | SEK |
| GTIN/EAN | 5706445250332 |
