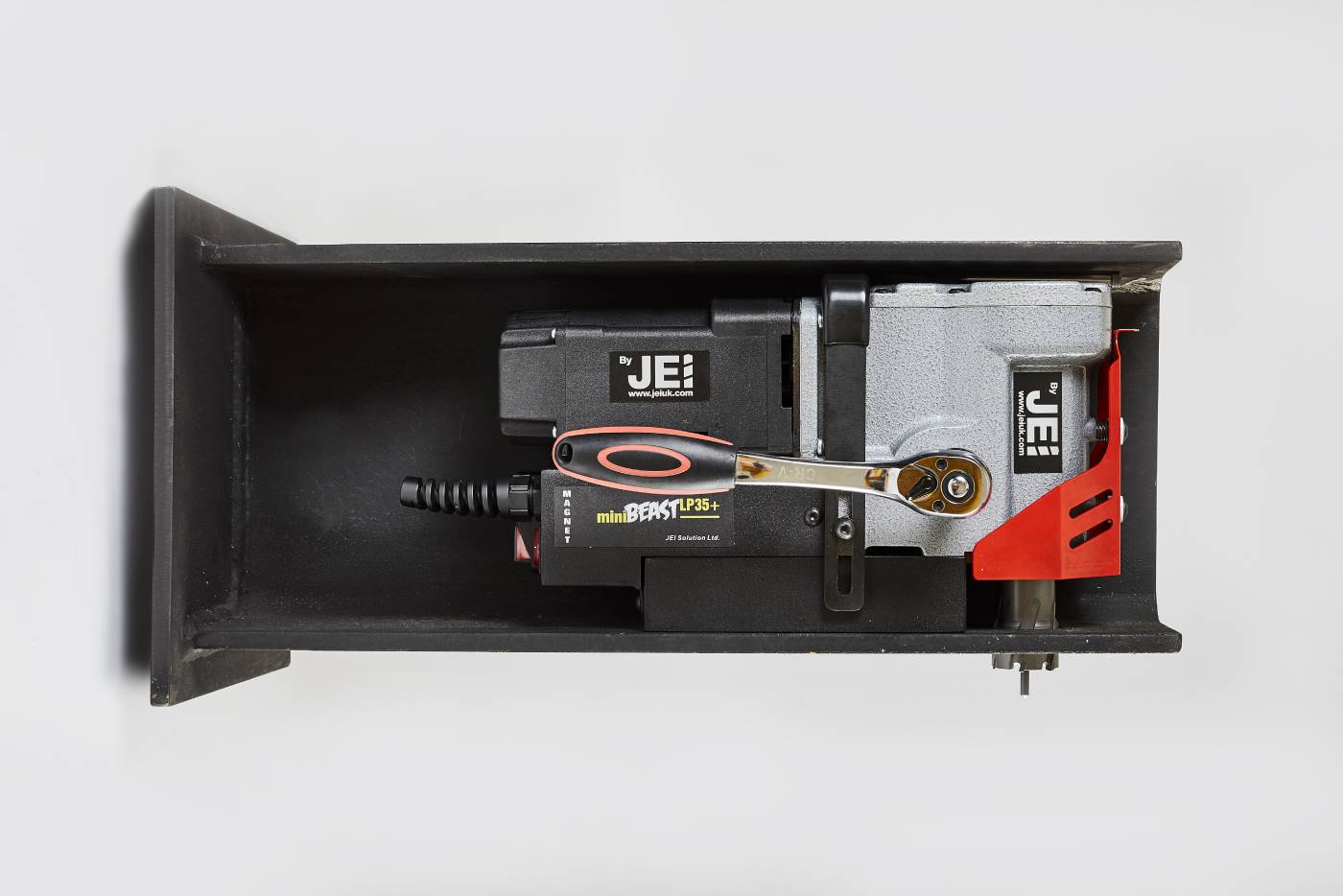

Magnetic drill Minibeast LP35+
  • Magnetic drill Minibeast LP35+
  • Magnetic drill Minibeast LP35+
166590597

Magnetic drill Minibeast LP35+

MAGNETIC DRILL JEI MINIBEAST LP35PLUS 35MM 920W 230V-11PHASE

Product benefits

  • Very low, fixed working height of only 176 mm
  • Extremely low weight: 9.5 kg
  • Compact design for use in confined areas
  • Max. drilling diameter 35 mm (with core drill)
  • Takes standard-length carbide core drills (35 mm)
  • Positive drill spindle drive gives holes with tight tolerances
  • Takes short twist drills with Weldon shank Ø 19.05 mm (3/4")
  • Integrated machine guard
  • Removable feed handle that can be fitted on either side (left or right)
  • Lifting handle makes transport easier

Description

Thanks to its compact design, the MiniBeast LP35+ is ideal for drilling in confined spaces. The LP35+ is a powerhouse in a small format (height: 176 mm, weight: 9.5 kg) that is perfect for work on construction sites.

Attributes

ETIM class codeEC002243
Magnetic base width80 mm
Magnetic base length165 mm
Magnetic pulling force8.9 kN
Motor output (W)0.92 kW
Motor voltage240 V
Spindle speed350-520 r/min
Weight12.4 kg

Article information

Base unitPCS
Contents (Per base unit)1 PCS á 1 ST
Minimum order quantity1 PCS
CurrencySEK
GTIN/EAN5060989227633
  • Articles
  • Specifications
  • Compare Articles
  • Similar Products
GTIN
Item no.DescriptionPackContents
166590597MAGNETIC DRILL JEI MINIBEAST LP35PLUS 35MM 920W 230V-11PHASE
GTIN: 5060989227633PCS1
