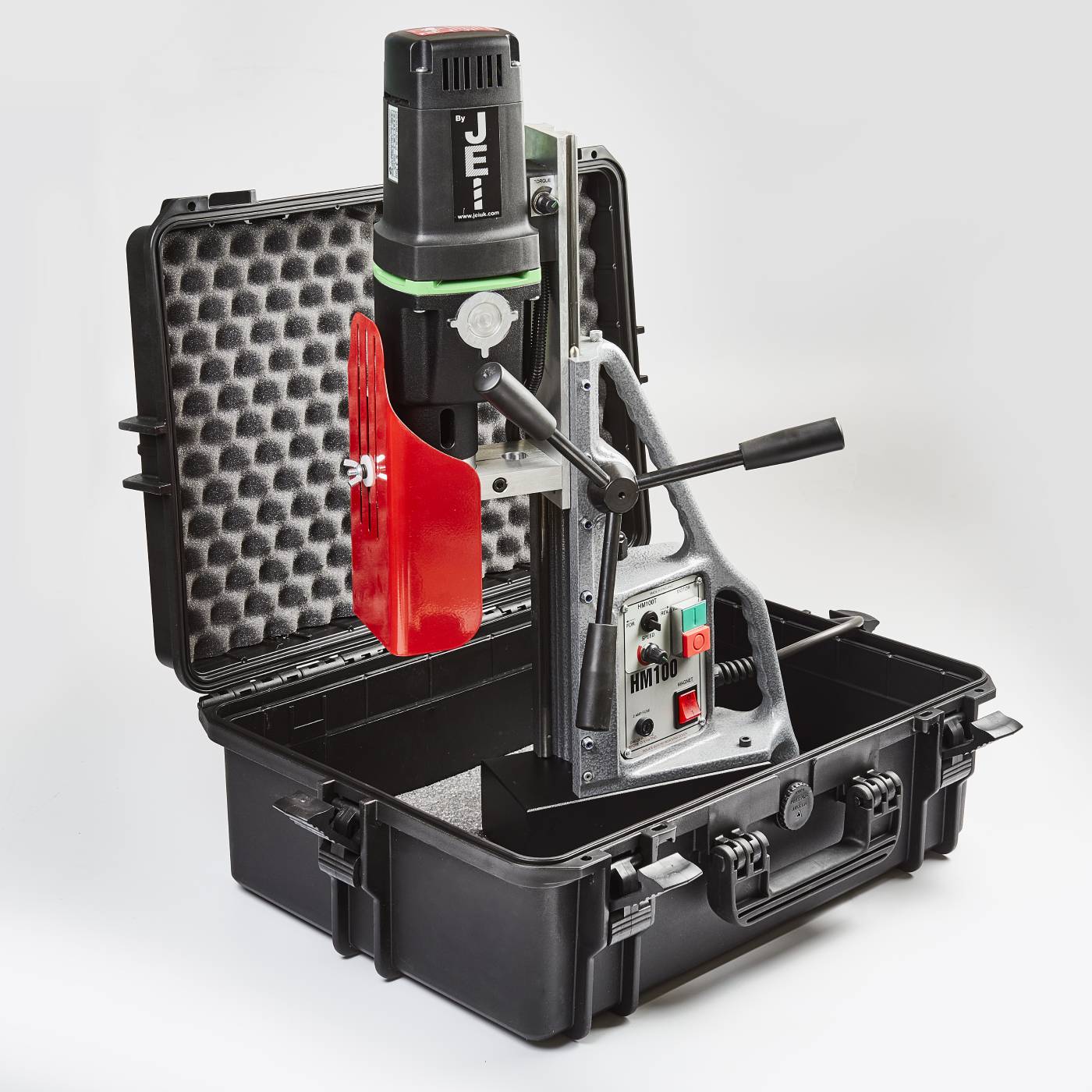

Magnetic drill Magbeast HM100

MAGNETIC DRILL JEI MAGBEAST HM100 100MM 1700W 230V-1PHASE

Product benefits

Very strong 1 700 W motor. High machining capacity.
Low weight (only 24 kg) but still handles drilling with a Ø 100 mm drill. Unbeatable ratio between weight and machining capacity.
Four-speed gearbox. Ideal for many different types of machining.
Total stroke length for the drill 250 mm. Makes drilling with long drills (150 mm) easier.
Twin guides that are easy to maintain. No wearing parts + adjustment-free operation.
Rotatable body (360 degrees) available as an option

Description

The powerful motor (1 700 W) and the four-speed gearbox on the MagBeast HM100 give high machining capacity. Adjustment-free operation + no wearing parts.

Attributes

ETIM class code	EC002243
Magnetic base width	102 mm
Magnetic base length	212 mm
Magnetic pulling force	20.1 kN
Motor output (W)	1.7 kW
Motor voltage	240 V
Spindle speed	110-680 r/min
Weight	29 kg

Article information

Base unit	PCS
Contents (Per base unit)	1 PCS á 1 ST
Minimum order quantity	1 PCS
Currency	SEK
GTIN/EAN	5060989227619

Articles
Specifications
Compare Articles
Accessories
Similar Products

Art.nr

GTIN

Item no.	Description	Pack	Contents
166590399	MAGNETIC DRILL JEI MAGBEAST HM100 100MM 1700W 230V-1PHASE
	GTIN: 5060989227619	PCS	1
