30480107

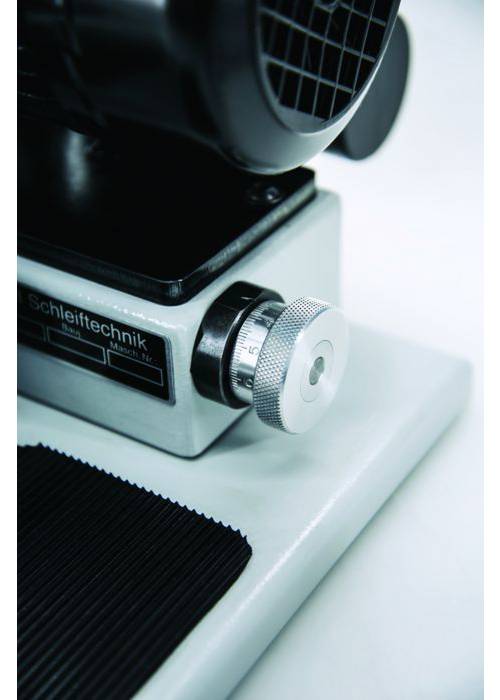

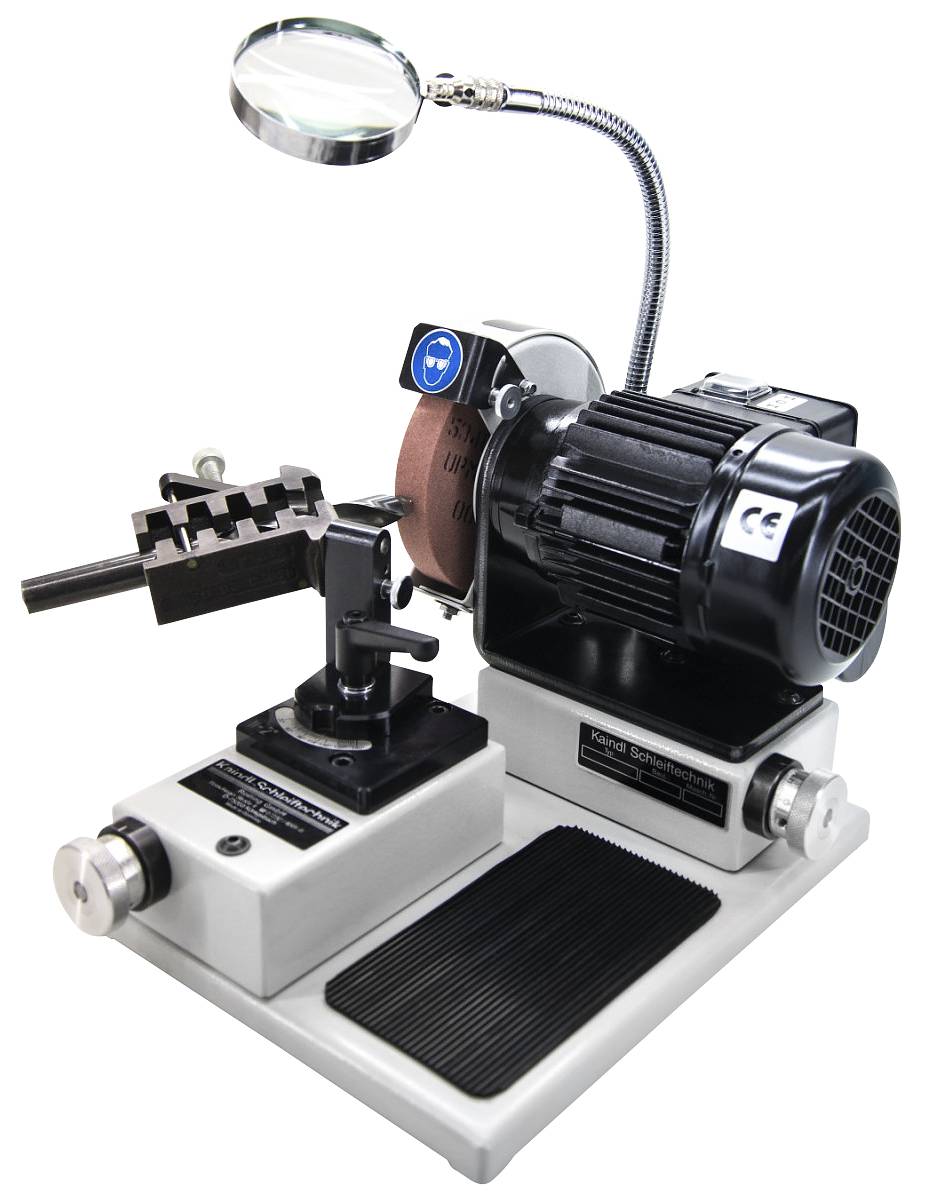

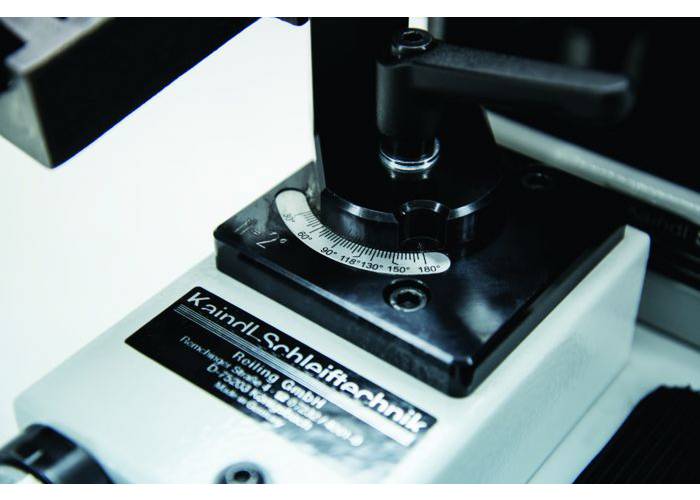

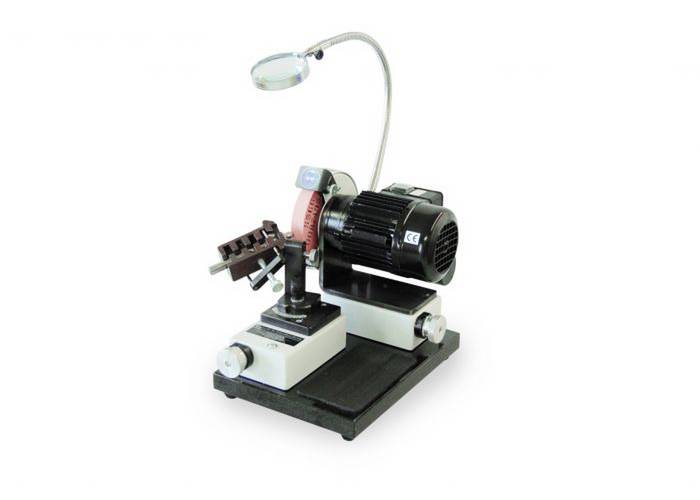

Drill grinding machine Kaindl BSG 20
DRILL GRIND.MACHINE BSG20Description
A rapid, easy to use drill grinding machine which has a patented system with mirror-inverting prism that guarantees the greatest possible precision and cutting edge symmetry. Functions on all sorts of drill, step drill, central drill for plate and wood, blades and millers, etc. and steel qualities such as high-speed steel, chrome vanadium steel, cemented carbide, etc.
Supplied complete with 1-speed motor – protection class IP 54, drill holder, corundum grinding wheel, dresser and magnifying glass.
Attributes
| ETIM class code | EC011933 |
| Manufacturer´s description | BSG 20 |
| Sound level | 58 dB(A) |
| Rated current | 0.8 A |
| Cutting speed | 22 m/s |
| Clearance angle, min | 0 ° |
| Clearance angle, max | 30 ° |
| Grinding area drill diameter, min | 1 mm |
| Grinding area drill diameter, max | 21 mm |
| Sanding disc width | 20 mm |
| Sanding disc diameter | 125 mm |
| Nose angle, max | 190 ° |
| Nose angle, min | 0 ° |
| Spindle speed | 2840 RPM |
| No. of bevels | 1-phase |
| Working position angle | 90°/118°/130° |
| Drill holder | Yes |
| Enclosure class IP | IP54 |
| Model | Bench |
| Weight | 9 kg |
Article information
| Base unit | PCS |
|---|---|
| Contents (Per base unit) | 1 PCS á 1 ST |
| Minimum order quantity | 1 PCS |
| Currency | SEK |
| GTIN/EAN | 4003103176517 |
