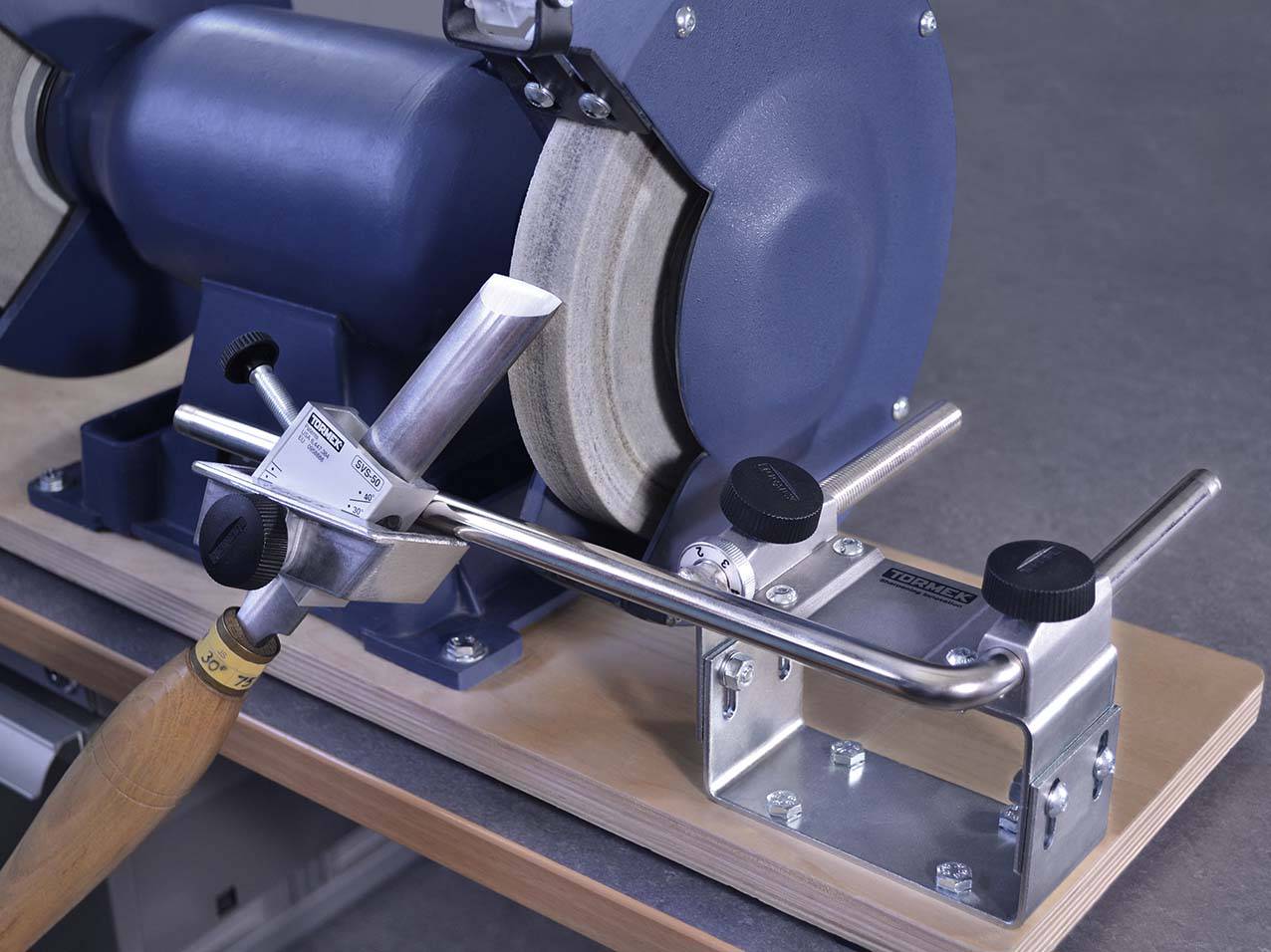

Installation kit TORMEK BGM100

Installation kit BGM-100 for bench grinding machines can be mounted on a bench grinding machine for grinding discs with diameters 150–250 mm.

The kit includes a universal support, universal support frame, adjustable block (56–89 mm), rubber feet, a manual, screws and accessories.

The kit can be mounted on both sides of the bench grinding machine.

The BGM-100 kit allows you to use all Tormek’s lathe tool jigs on your bench grinding machine: gouging jig (SVD-185), multi-jig (SVS-50) and grinding support (SVD-110).

You can also use the TTS-100 setup device, which works regardless of disc diameter.

The pack includes a height adjustable block, screws and accessories, universal support, horizontal bracket, feet for the base that you build yourself, and detailed instructions. Mount the kit on your preferred side of the machine.

Note:

Grinding jigs must be purchased separately.
