Combination straight-edge Hultafors Libella

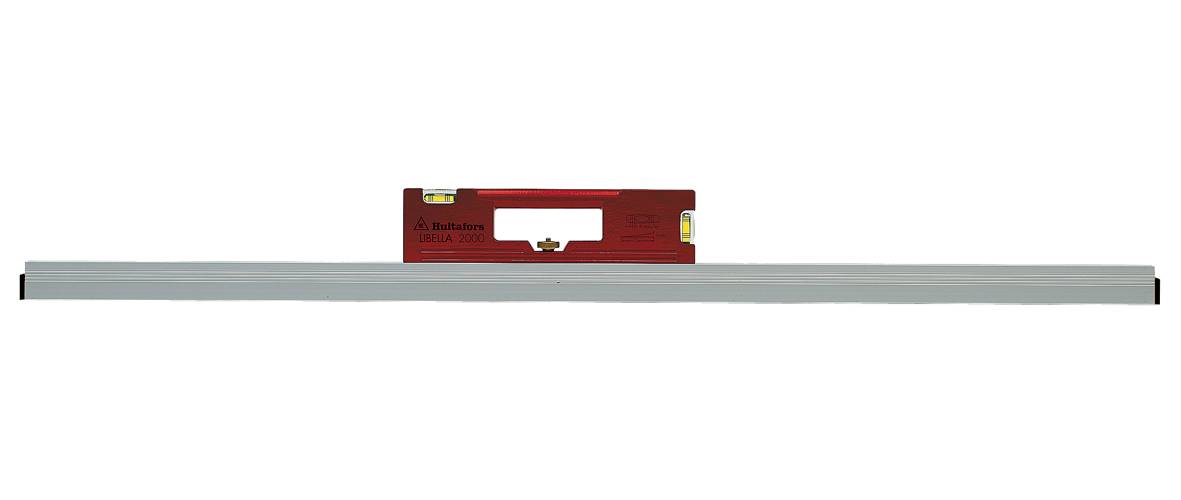

Libella. Consists of a cast main part (the actual level), to which different rails can be connected to achieve multiple applications.

Level 2000 (main part). Manufactured of plastic coated aluminium. Provided with level and plumb vials, with all-round reading. The vials are housed in spring-mounted holders, and are easy to adjust.

Tolerance normal position ±0.25 mm/m, up and down ±0.75 mm/m.

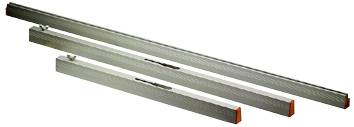

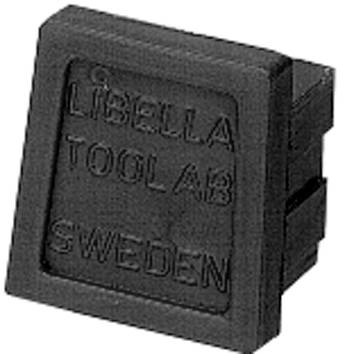

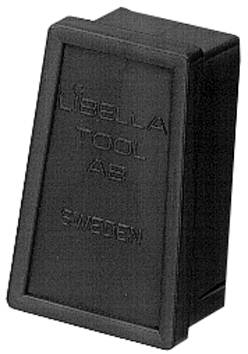

Level rail. Provided with a keyway in which the main part can be moved and locked to the required position. Of seamless anodised aluminium section. Protective plugs in the ends.

Extension rail for level rails. Provide an extendable level. The system can be used as a gauge for levelling between roof and ceiling. The extension rails can each be used as shorter levels with the main part connected. Of seamless anodised aluminium section. Protective plugs in the ends. Supplied in pairs, 600+900 mm.
