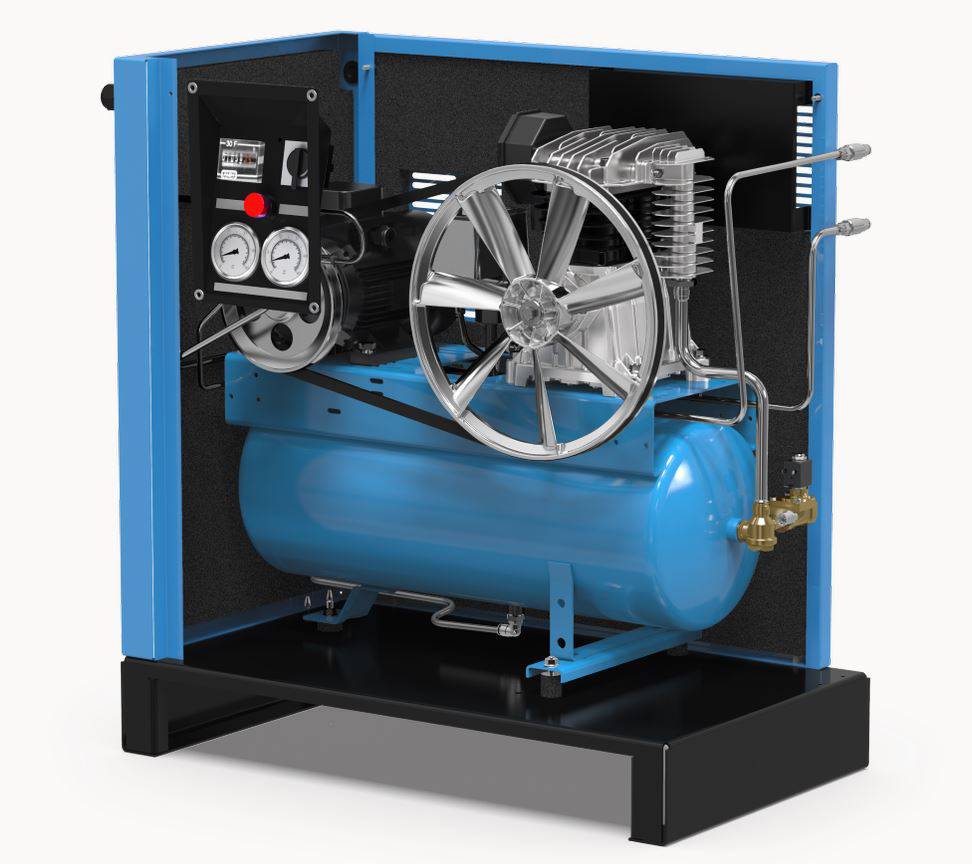

Reciprocating compressor ABAC silent A29
PISTON COMPRESSOR LINE ABAC LN0 3.0HP 27LDescription
New ABAC silent pistons LN range. ABAC engineering during 2020 re-design the consolidated Silent range in order to have more reliable, small and performant units for their customers. In this specific case a 3Hp compressor that include in a very small canopy a 27lt tank and mount the well-known A29 pump, designed by ABAC engineering too. This units will grant a very low noise level and the outstanding ABAC performances. Can be installed in a open room and suitable for all applications.
Attributes
| ETIM class code | EC002860 |
| Manufacturer´s description | LN0-A29-27-M3-DOL |
| Working pressure, max. | 10 Bar |
| Frequency | 50 Hz |
| Throughput cylinder volume | 320 l/min |
| Length | 845 mm |
| Sound power level (LW) | 82 dB(A) |
| Sound pressure level (Lp) | 62 dB(A) |
| Motor output (hp) | 3 hp |
| Motor output (W) | 2.2 kW |
| Motor voltage | 230 V |
| Speed compressor block | 1350 RPM |
| Volume, air tank | 27 l |
| No. of bevels | 1-phase |
| Cylinder type | Piston |
| Drive type | Belt drive |
| Oil lubrication | Yes |
| Flexible | Stationary |
| Step | 1-stage |
| Width | 430 mm |
| Height | 761 mm |
| Weight | 87 kg |
Article information
| Base unit | PCS |
|---|---|
| Contents (Per base unit) | 1 PCS á 1 ST |
| Minimum order quantity | 1 PCS |
| GTIN/EAN | 8024900716962 |
