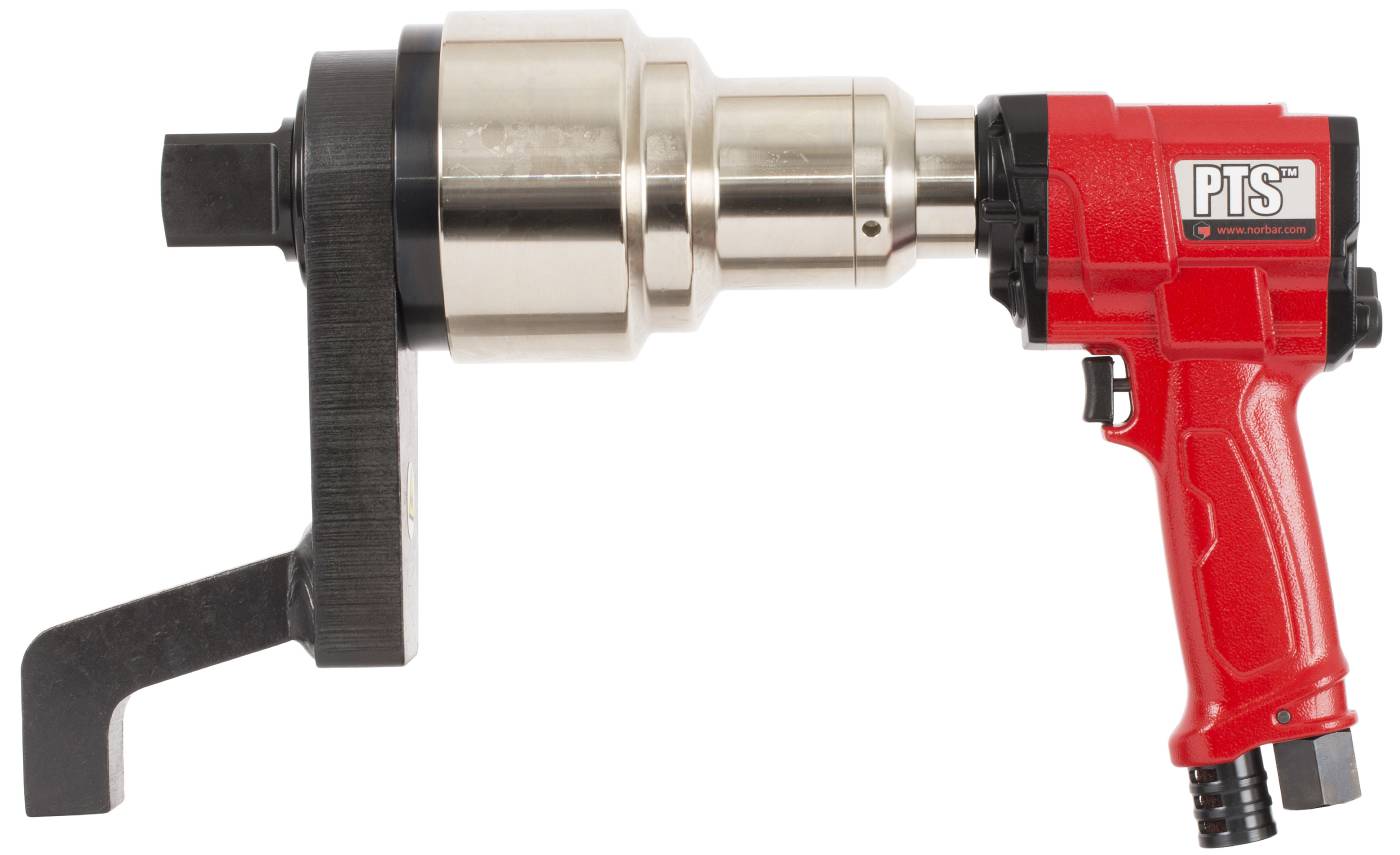

High torque wrench Norbar PTS Series 119

Description

The PTS™ 119 series has been developed to take account of ergonomics, such as sound level and weight. The low weight of the machine combined with the high speed and stall-torque (non-impact) drive makes it easy to work with high torques. The torque can be set easily by adjusting the air pressure against the supplied graph (torque/bar). Interchangeable square pins are available for easy and cost effective maintenance. Sound level 79 dB(A) under load. All models feature a soft start to make work easier. A wide variety of accessories is available, e.g. nose extensions, angular gear and built-in torque transducers for higher accuracy.

Attributes

Length369 mm
Sound level (BS EN ISO 11148-6)79 dB(A)
Air consumption16.5 l/s
Pin dimensions, output1 1/2"
RPM2.6 RPM
Gear diameter119 mm
Weight without counterhold12.52 kg
Thread directionRight, Left
Air connection, thread1/2 BSP
Torque directionLeft
Torque typePneumatic
Vibration (ISO 28927-2)<2,5 m/s²
Width121 mm
  • Articles
  • Compare Articles
  • Similar Products
GTIN
Item no.DescriptionPackContents
270580103PTS 119-6000 NM
Art.nr: 270580103ST1
270580202PTS 119-7000 NM
Art.nr: 270580202ST1
