Laser receiver Leica Rod-Eye 120 Basic Rod-Eye 140 Digital / Rod-Eye 160 Digital / Rod-Eye 180 Digital RF
Description
Rod-Eye 120 Basic. Basic model of laser receiver incl. holder in the Rod-Eye series. Built-in detection window 70 mm. LEDs. LCD display on front and rear for easier readout.

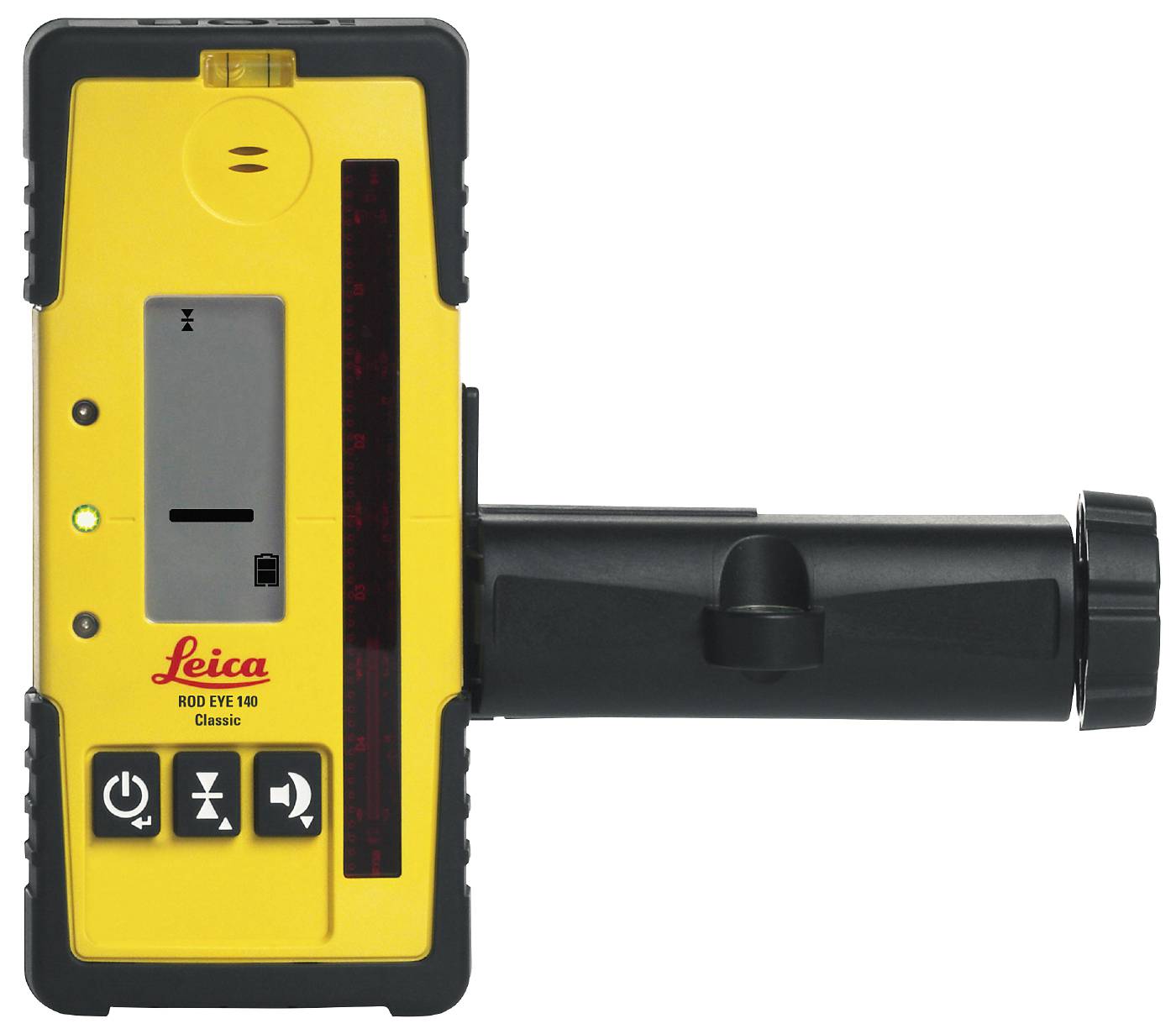

Rod-Eye 140. Laser receiver incl. holder with proportional display. Built-in detection window 120 mm, which allows you to see the laser beam over the full distance. LEDs. LCD display on front and rear for easier readout.

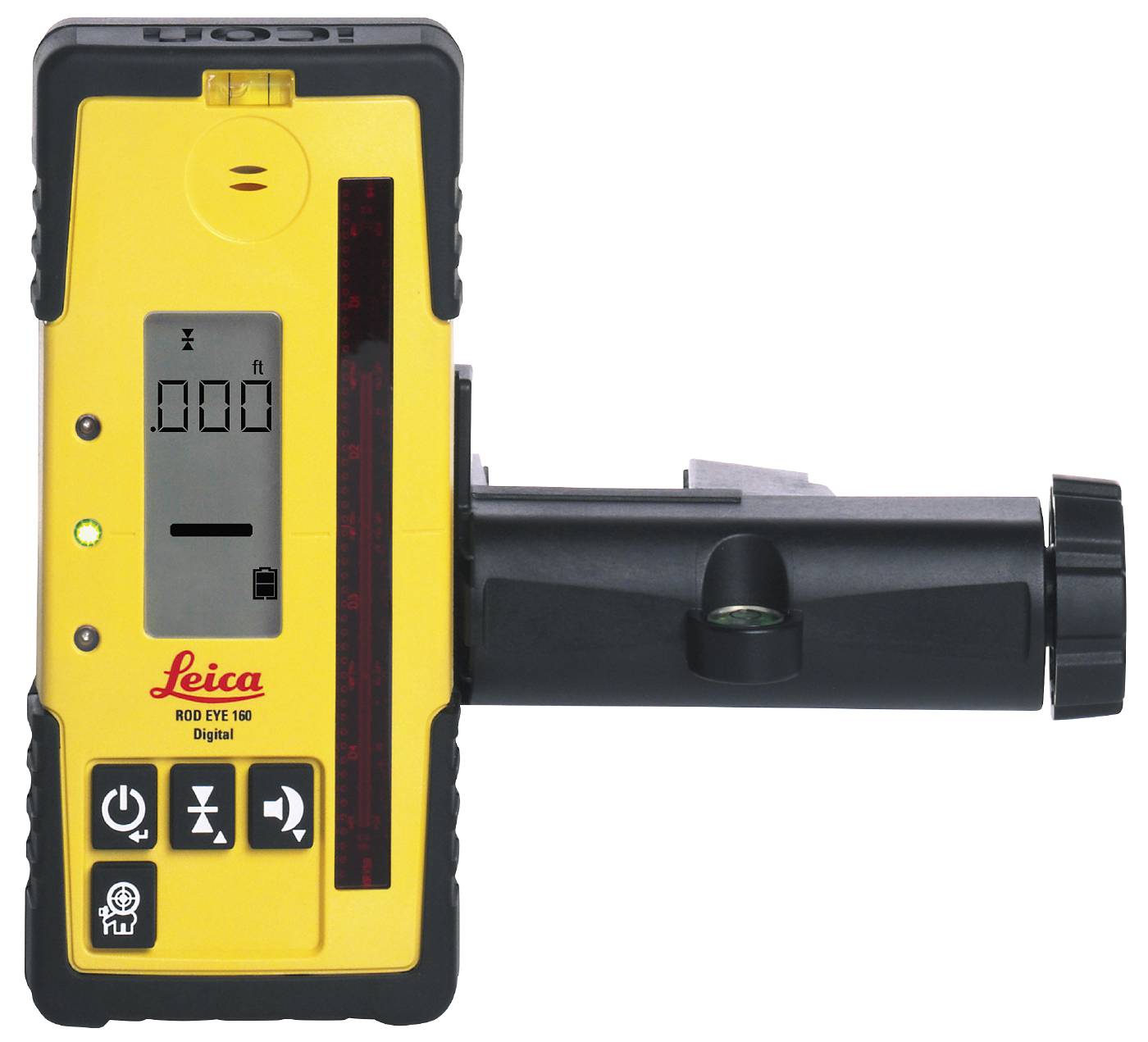

Rod-Eye 160 Digital. Professional laser receiver incl. holder with millimetre display and accuracy to half a millimetre. Hold function which maintains the value on the display. LEDs. LCD display on front and rear for easier readout.

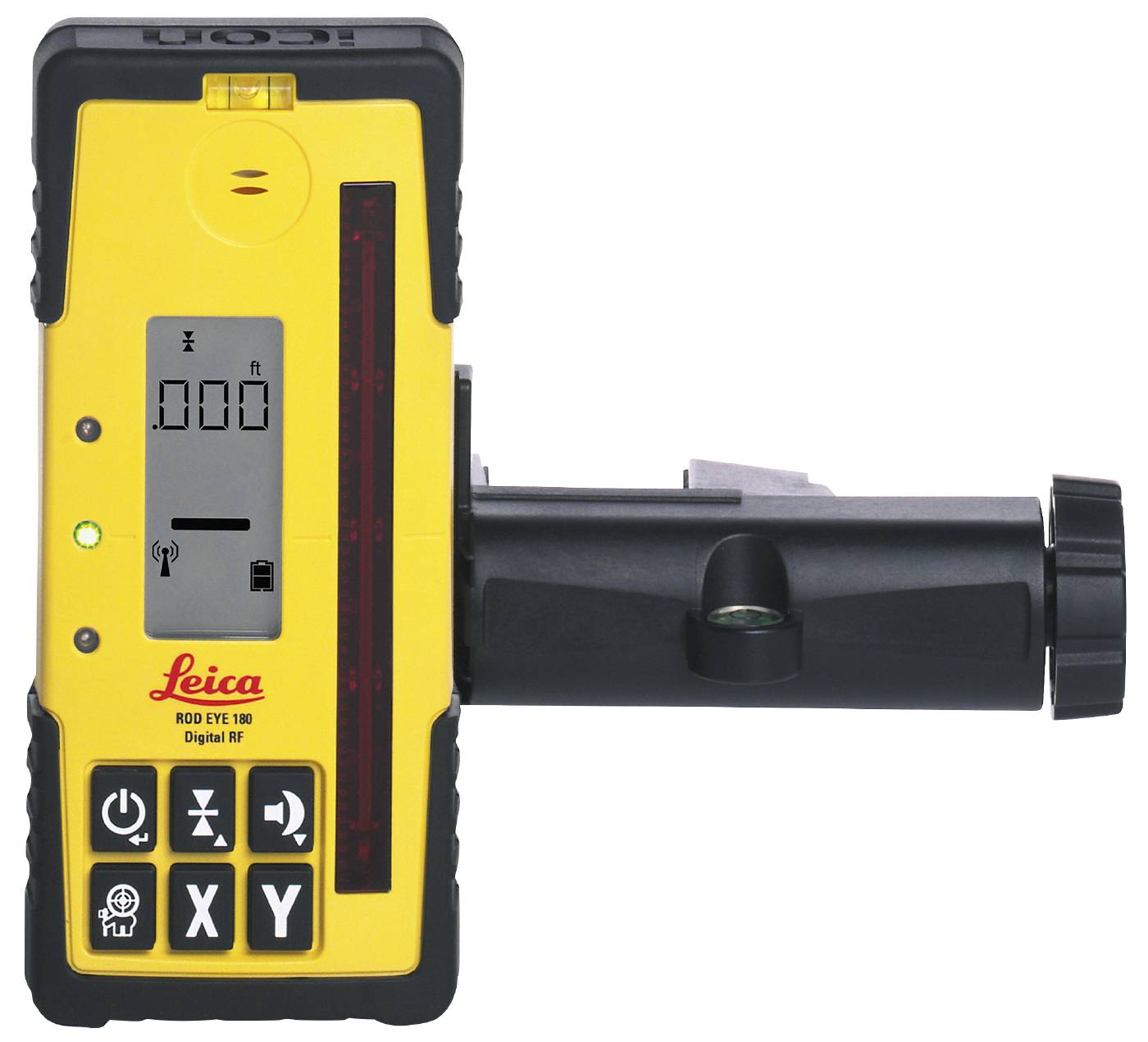

Rod-Eye 180 RF Digital. Premium laser receiver including holder with built-in radio remote control, millimetre display and accuracy to half a millimetre. Hold function which maintains the value on the display. LEDs. LCD display on front and rear for easier readout.
Automatically adjusts your laser plane in two axes by pressing a button – horizontally and vertically. Check and correct the laser plane in real time via the smart-locking feature. (Fits models Rugby 820, 830, 840).
Separate holder for Rod-Eye 140, 160 and 180 Digital RF, see article number 21893-1392
Attributes
| Work Temperature, min | -20 °C |
| Work Temperature, max | 50 °C |
| Operating time | 50 h |
| Inaccuracy fine | ±1.0 mm |
| Inaccuracy coarse | ±3.0 mm |
| Sound level | 105 dB(A) |
| Inaccuracy medium | ±2.0 mm |
| Inaccuracy very fine | ±0.5 mm |
| Inaccuracy very coarse | ±5.0 mm |
| Enclosure class IP | IP67 |
| No. of batteries | 2 pcs |
| Battery type | Alkaline |
| Battery type ANSI | AA |
| Width | 76 mm |
| Depth | 29 mm |
| Height | 173 mm |
- Articles
- Compare Articles
- Similar Products
| Item no. | Description | Pack | Contents |
|---|---|---|---|
| 218930915 | RECEIVER ROD EYE 120 | ||
| GTIN: 7640110693315 | PCS | 1 | |
| 218931004 | RECEIVER ROD EYE 140 | ||
| GTIN: 7640110693322 | PCS | 1 | |
| 218931103 | RECEIVER ROD EYE 160 | ||
| GTIN: 7640110693339 | PCS | 1 | |
Discontinued articles
| Art.nr | Description | Pack | Contents | Alternative |
|---|---|---|---|---|
| 218931205 | PCS | 1 |
