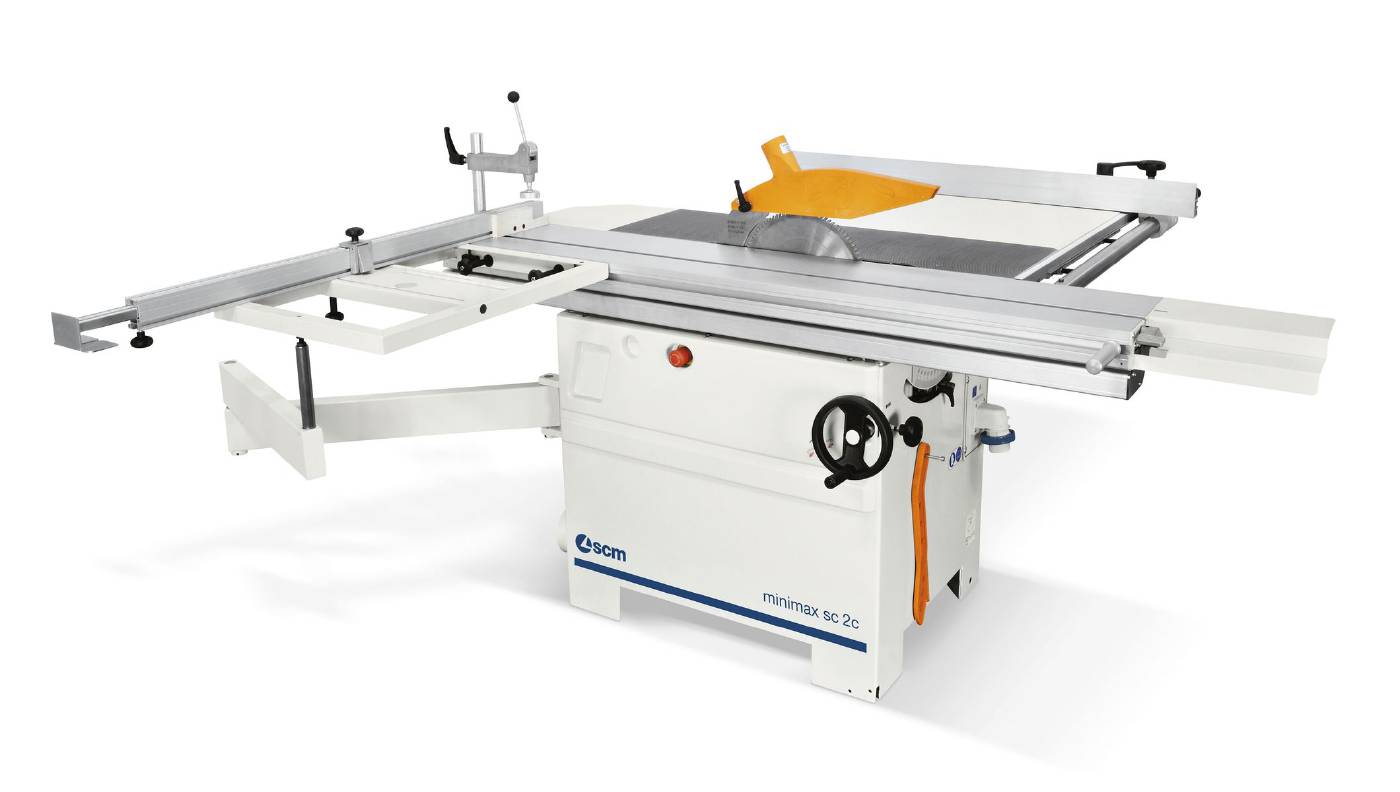

Circular saw Mini Max SC2 Classic and Mini Max SC3 Classic

Circular saw intended for professional use. Stand in heavy-duty steel construction. Cast iron table. The saw blade can be lowered and raised using a screw spindle and hand wheel and is adjustable for mitre sawing through 45°. Adjustment with clear graded scale. Integrated aluminium sliding table with telescopic stop rail, equipped with “flip-over” stop for batch cutting and clamp. The circular saw can be equipped with a scribe saw device as an accessory for sawing coated board material. Saw width against stop is max. 900 mm, for mounting the extension table on the right-hand side of the machine, allows a saw width against the stop of up to 1,270 mm, including long stop rail and support legs. Saw blade diameter × hole with/without scribe saw assembly 250x30/315x30 mm. Max. saw height (with/without scribe saw) 100/79. Time to stop saw blade, less than 10 seconds.

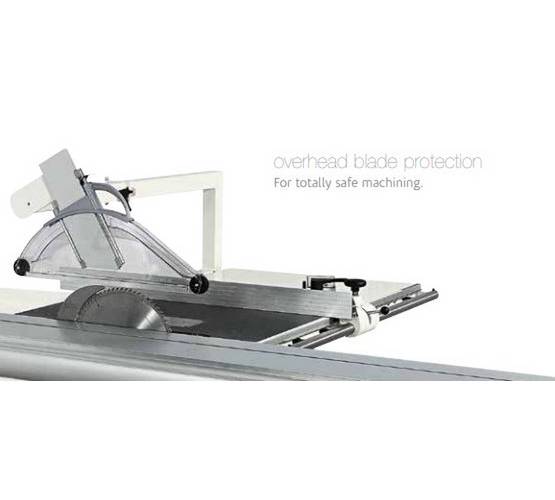

Supplied with upper arm protection according to AFS 2006-4. Swedish Work Environment Authority's requirements for working in technical woodworking applications.

NOTE: Saw blade 315 mm not included. Scribe saw blade 80 mm not included.

Option:

-   Quick brake, Note! Cannot be retrofitted, this must be done during manufacturing.

-         Sliding table to support larger material.

-         Digital meter when adjusting the stop.
