Beveller TRUMPF TKA 1500
brand logo
Beveller TRUMPF TKA 1500
  • Beveller TRUMPF TKA 1500
  • Beveller TRUMPF TKA 1500

Beveller TRUMPF TKA 1500

Description

TruTool TKA 1500 can cut clean edges, break sharp edges or insert a radius into components. This is possible at various angles of inclination and in just one operation.

The TruTool TKA 1500 is equipped with a powerful and robust 2600 W motor, which at the same time will impress with its extremely low noise level and enable to work without getting tired. The resulting stable machine guidance in combination with the ergonomic guide and motor handle also has a positive effect on the chamfer quality. Can create chamfer lengths of up to 15,00 MM and fix them in a continuously adjustable manner and without tools. The result: High-quality, repeatable edges right away - Without rework. With the TruTool TKA 1500 can create clean visible edges, break off sharp edges, add a radius or prepare a weld seam. Any oxidation or deformation of the material is avoided.

Included accessories for 216420414:

 - 4 cutters (integrated)

 - Cutter mount 45° with integrated blade wheel (integrated)

 - Hexagon wrench key set (Allen 5,0 MM, Allen 6,0 MM and TORX screwdriver T15 x 118)

 - Grease G3 100 G

 - Protective eyewear

 - Box for small parts

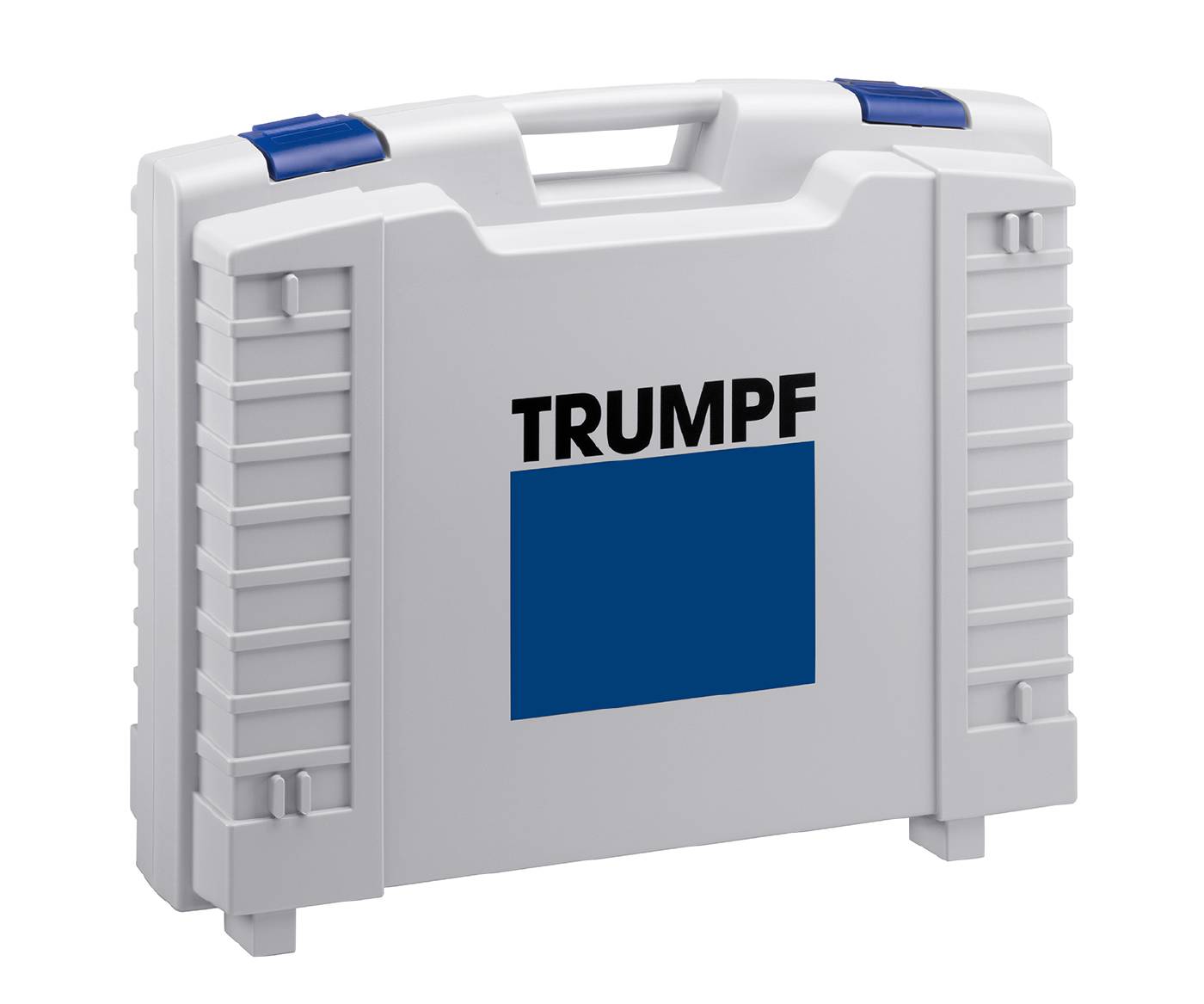

 - Carrying case

 - Insertion aid

Included accessories for 216420513:

 - Hexagon wrench key set (Allen 5,0 MM, Allen 6,0 MM and TORX screwdriver T15 x 118)

 - Grease G3 100 G

 - Protective eyewear

 - Box for small parts

 - Insertion aid

 - Carrying case

The TruTool TKA 1500 make the run-in to the sheet metal extraordinarily easy.

Attributes

ETIM class codeEC003322
Inner radius min.30 mm
Weight10 kg
  • Articles
  • Compare Articles
  • Similar Products
GTIN

Discontinued articles

Art.nrDescriptionPackContentsAlternative
216420406EDGE MILLER TRUMPF 2385840 TRUTOOL TKA1500 1A1 1
    216420505EDGE MILLER TRUMPF 2484791 TRUTOOL TKA1500 1A1 EXCL BLADE 1
