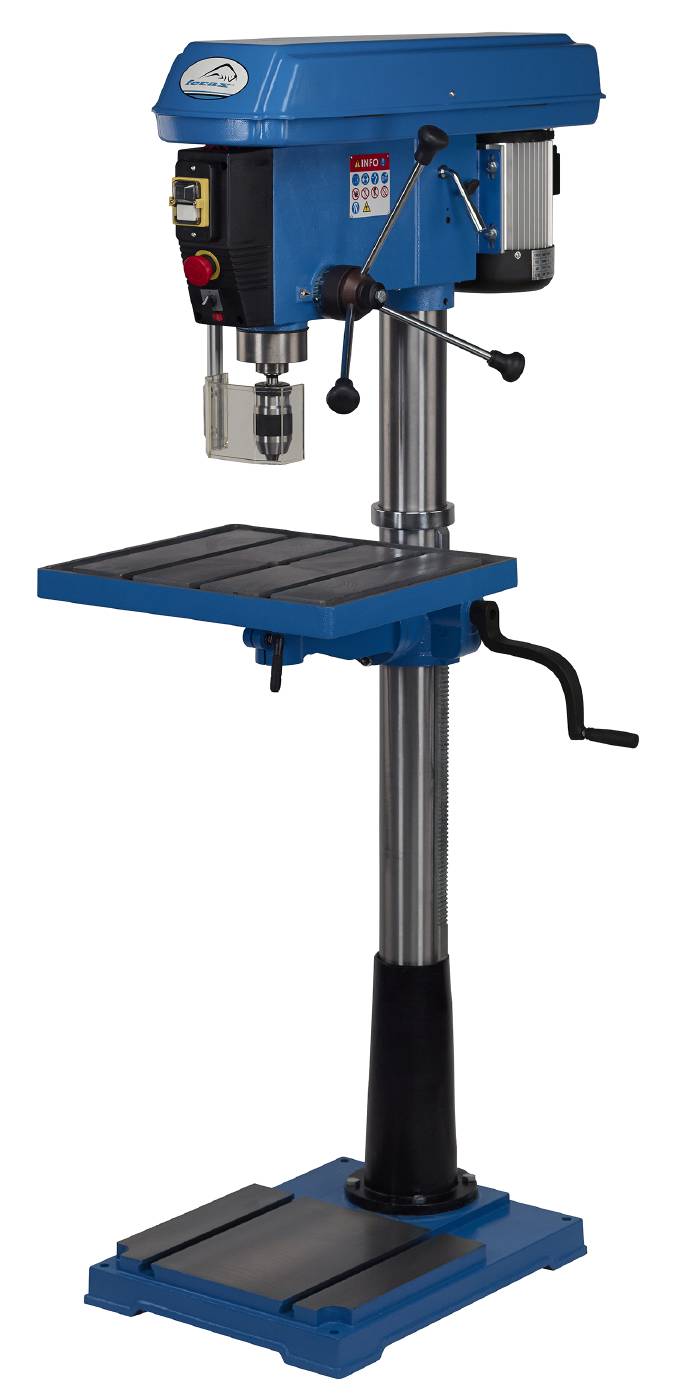

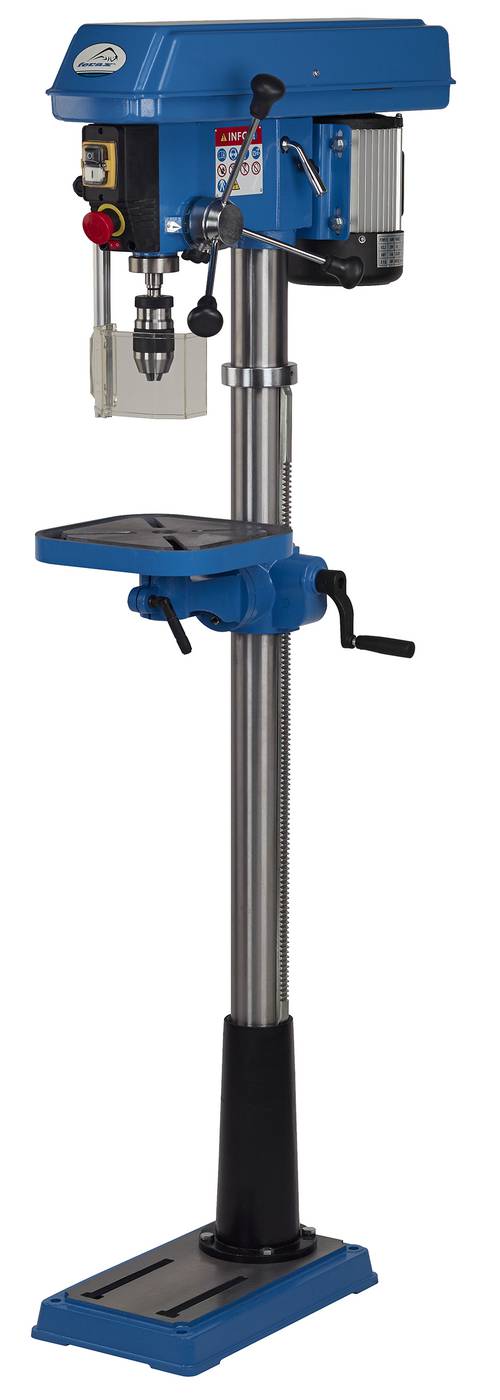

Vertical drilling machine Ferax

Manual, belt-driven bench and vertical drilling machines.

For workshops and light industry.

Speed change by belt pulley, three-lever hub for manual feed.

The table can be raised and lowered by a rack, angled with a graduated scale (45° 0° −45°) and swung to the side.

With ball-bearing spindle.

Adjustable drilling depth with a graduated scale.

Laser cross for precise drilling.

Height-adjustable drill guard with microswitch.

Supplied complete with keyless chuck (16 mm), drill chuck arbor, drift key and assorted hex keys, motor (one speed) (enclosure class IP20).

Earthed mains cable (3 conductors) and switch with no-volt protection.
