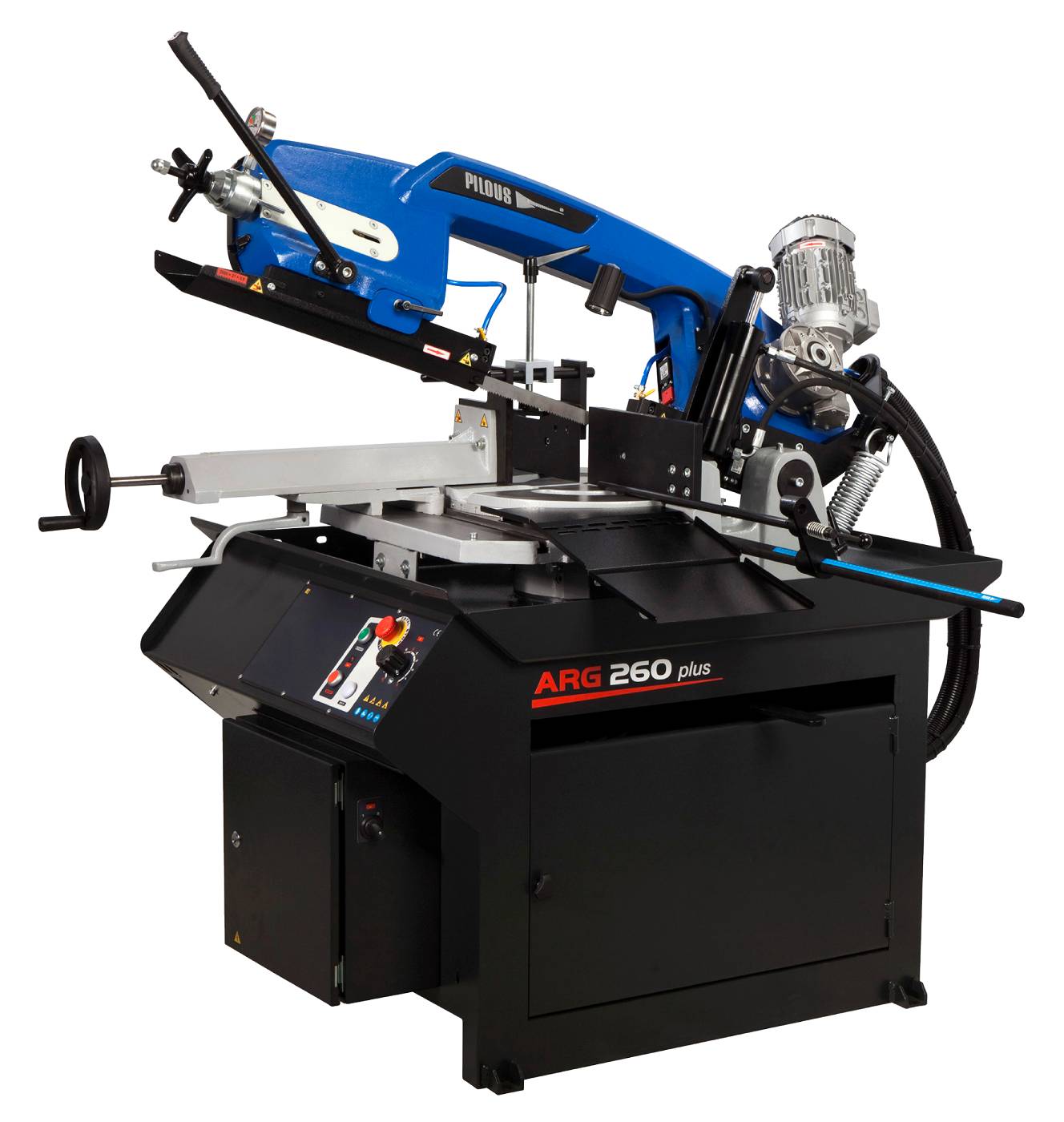

Cold band saw Pilous ARG 260
Description
ARG 260 is an upgraded version of the ARG 250 model. A universal and robust band saw intended for maintenance workshops, schools, etc. All electrical cables and coolant distribution are hidden in the hollow sections of the arm, which means they are protected against damage. The new arm concept makes it much simpler to replace saw blades or to clean the inside of the arm. ARG 260 also features many technical adjustments and changes such as improved quality, user comfort and service life. Machine supplied complete with motor, enclosure class IP 54, electric coolant pump, band saw blade and instruction manual.
Suitable hydraulic oil, see 155420102.
Suitable cutting fluid, see 155510209.
Attributes
| Cuts square 0° | 255 mm |
| Cuts square 45° | 185 mm |
| Cuts square 60° | 120 mm |
| Cuts round 0° | 260 mm |
| Cuts round 45° | 200 mm |
| Cuts round 60° | 125 mm |
| Coolant pump | 0.05 kW |
| Coolant tank | 15 l |
| Supply voltage | 24 V |
| Motor voltage | 400 V |
| Saw blade speed | 0.5 m/mn |
| Saw table width | 27 mm |
| Saw blade length | 2880 mm |
| Saw blade thickness | 0.9 mm |
| Vice working height | 910 mm |
| No. of bevels | 3-phase |
| Cuts rectangular 0° | 300×200 mm |
| Cuts rectangular 45° | 185×200 mm |
| Cuts rectangular 60° | 125×120 mm |
| Enclosure class IP | IP54 |
| Feed | Semi-manual |
| Down-feeding | Hydraulisk |
| Saw blade speed | 35/70 m/min |
| Vice | Manual |
| Support | Yes |
| Width | 1498 mm |
| Depth | 1955 mm |
| Height | 2031 mm |
| Weight | 350 kg |
- Articles
- Compare Articles
- Similar Products
GTIN
| Item no. | Description | Pack | Contents |
|---|---|---|---|
| 277700100 | BANDSAW ARG 260 PILOUS 400V-3PH | ||
| Art.nr: 277700100 | ST | 1 | |
| 277700209 | BANDSAW ARG 260 PLUS PILOUS 400V-3PH | ||
| Art.nr: 277700209 | ST | 1 | |
