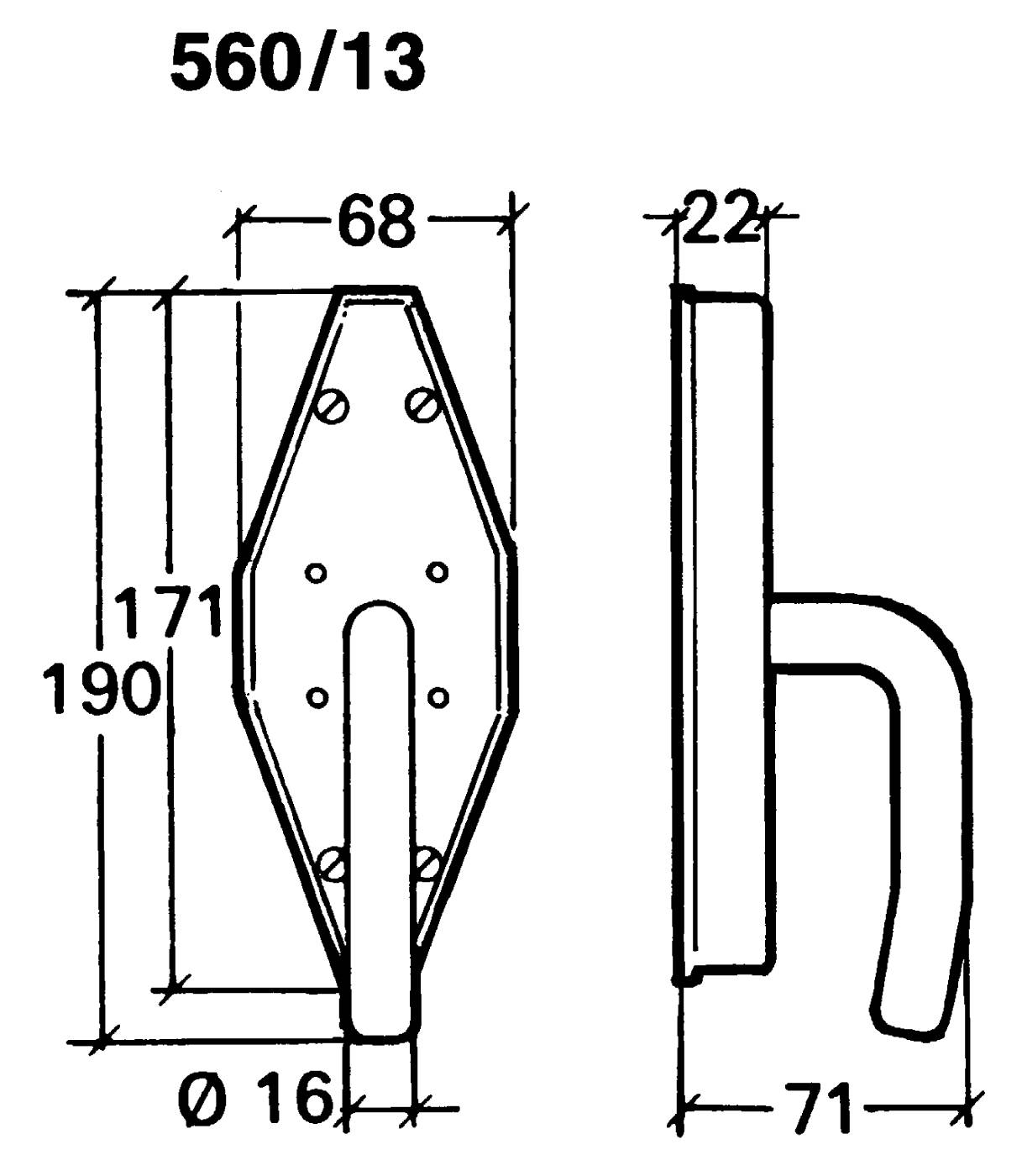

Door bolt Fix 560/13

Used for side-hung doors which are operated only from the inside. Two-point closure. Fits both right and left by repositioning the lock housing stop link. The stop link limits handle movement between the open and closed positions. Locking bar travel is 28 mm. Designed for locking from the inside with pressure cylinder Fix 2940. Can also be used as a panic bolt. The lock housing is then fitted without a stop link so the handle points upwards in the closed position. Suitable handle height is 1600 mm. Brass handle bearing. Galvanized steel. Lock housing, locking bars 13 mm square, bar stops, lockable handle 4735.
