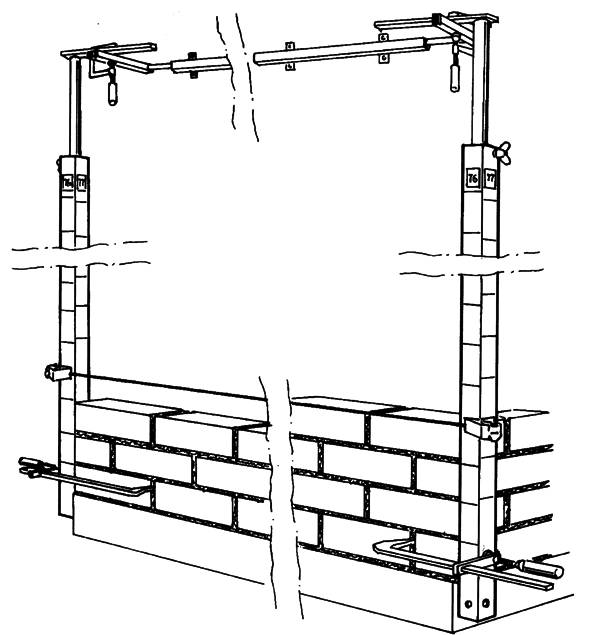

Gauge rods KGC 5805 / 5800 / 5801 / 5802 / 5803 / 5804

Bricklayers rods with punched course heights. Select the course by turning the rod to the required height. The revolving inner tube means the rod can be secured in all thinkable positions. The line holder and bricklayers block is attached easily without nails.

Aluminium frame with galvanised inner tube. The rod is 2000 mm in length with a telescopic inner tube for a further 2000 mm reach.

For bricklayers rods with other course heights than those stocked please contact customer service for special orders.

Swedish building standard recommends a joint thickness of 13-15 mm. Determine a consistent easily bricked course height for the whole building.

Example of course heights for facing brick:

Red or yellow 60+15 mm joint=75 mm.

Baskarp 62+15 mm joint=77 mm.

Mexi 65+14 mm joint=79 mm.

Module 87+13 mm joint=100 mm.
