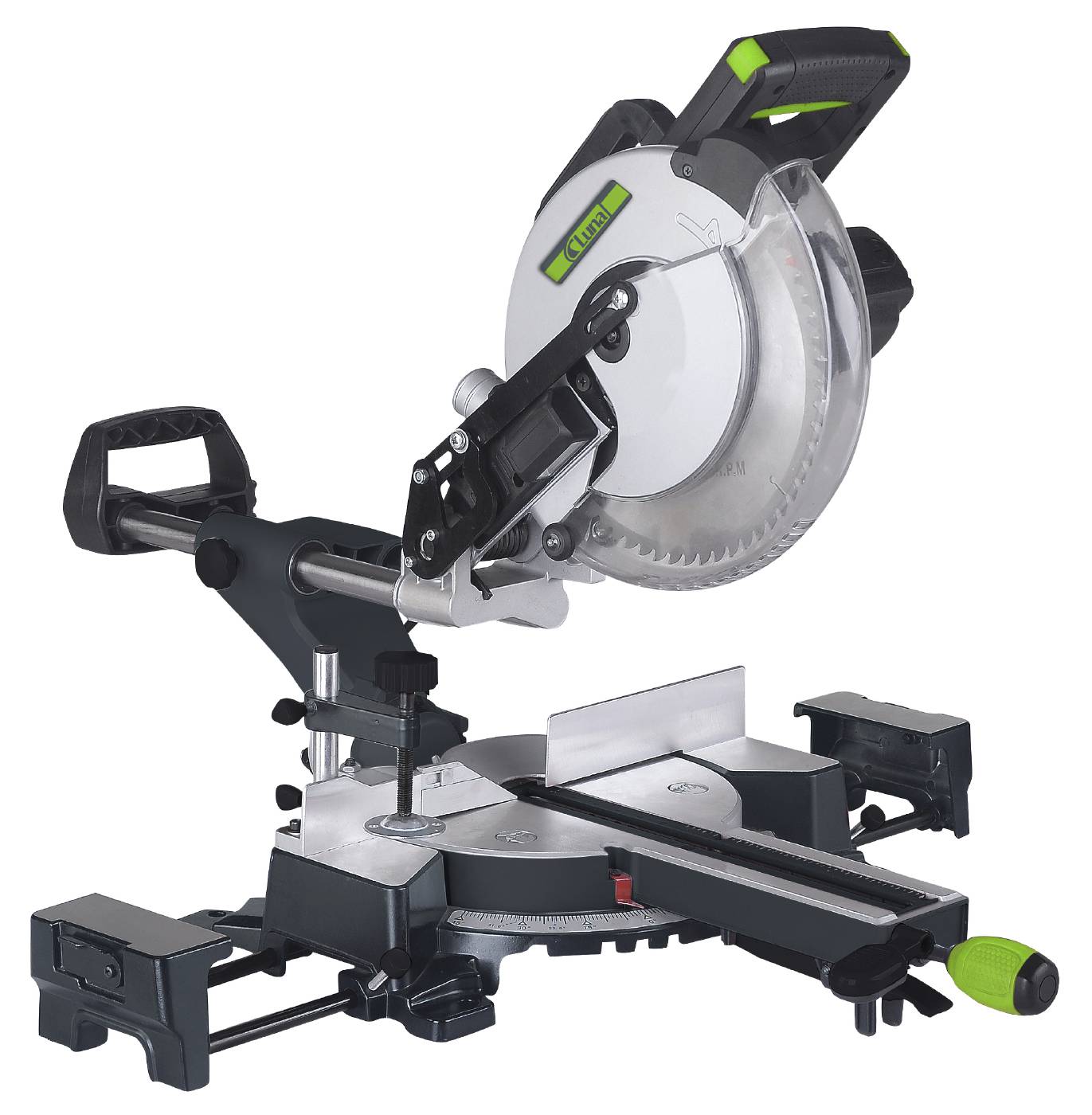

Cross-cut and mitre saw Luna JMS 260 230-1
SLIDING MITRE SAW JMS260 230V 1-PHASEDescription
Combined cross-cut and mitre saw. The saw is mounted on a ball bearing guide and can be tilted 45° to the left. It features a laser that clearly indicates the cut. The saw also has sliding stops. Saw bench and saw plate made of cast aluminium with fixed 15° stops which can be swivelled to the right and left. Supplied with tungsten carbide saw blade, dust bag and clamp.
Attributes
| ETIM class code | EC002814 |
| Manufacturer´s description | JMS 260 |
| Mitre right | 45 ° |
| Mitre left | 45 ° |
| Motor output (W) | 1800 W |
| Motor voltage | 230 V |
| Saw height 0° | 75 mm |
| Saw height 45° | 45 mm |
| Saw length 0° | 305 mm |
| Saw length 45° | 210 mm |
| Spindle speed | 4800 RPM |
| No. of bevels | 1-phase |
| Enclosure class IP | IP20 |
| Saw blade diameter | 255x25.4 mm |
| Angle cutting | 45 ° vänster |
| Weight | 15.5 kg |
Article information
| Base unit | ST |
|---|---|
| Contents (Per base unit) | 1 ST á 1 ST |
| Minimum order quantity | 1 ST |
| GTIN/EAN | 191440205 |
- Articles
- Specifications
- Compare Articles
- Documents
- Similar Products
GTIN
Discontinued articles
| Art.nr | Description | Pack | Contents | Alternative |
|---|---|---|---|---|
| 191440205 | SLIDING MITRE SAW JMS260 230V 1-PHASE | ST | 1 |
