262340102

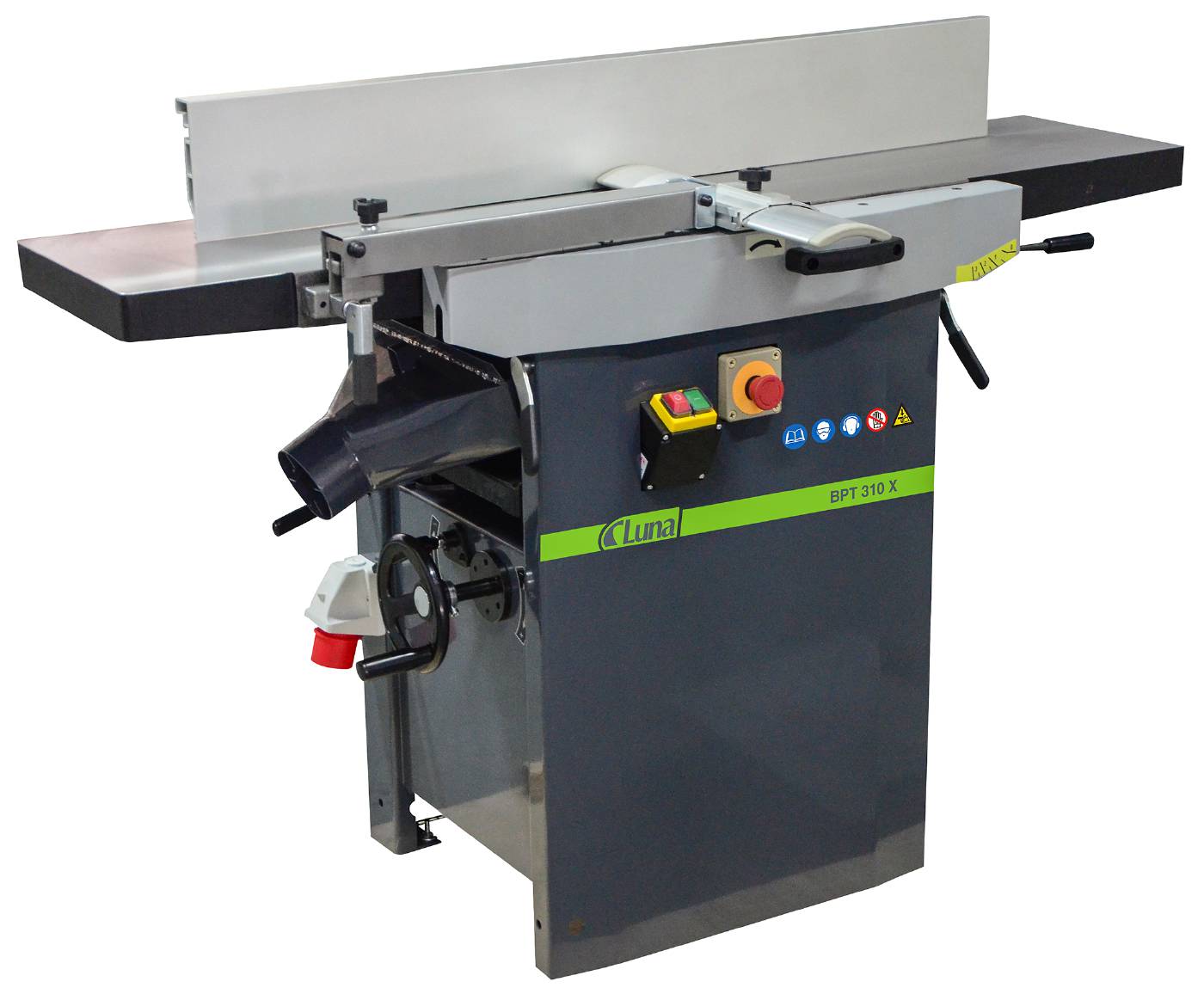

Comb. surface and thickness planer BPT310X
PLAN/THICKNESSER BPT310XDescription
Surface and thickness planer with long, cast iron planing table. The machine has a heavy-duty stop with quick setting that can be tilted 0–45°. Both tables open smoothly to allow you to switch quickly between jointing and planing. Quick and easy setting of the input and output table. Feed rollers can be disengaged.
Supplied with three HSS planing bits, precision stop, cutter guard, 100 mm extractor sleeve and zero voltage release switch.
Attributes
| ETIM class code | EC004038 |
| Manufacturer´s description | PT310X 400-3 |
| Connection sleeve diameter | 100 mm |
| Working height | 850 mm |
| Floor area width | 1410 mm |
| Floor area length | 790 mm |
| Planing bits | 3 pcs |
| Cutter diameter | 70 mm |
| Cutter speed | 5300 RPM |
| Feed rate | 7 m/mn |
| Smoothing planer table width | 305 mm |
| Smoothing planer table length | 545 mm |
| Smoothing planer´s material thickness | 200 mm |
| Smoothing planer´s shaving thickness | 3 mm |
| Surface planer table width | 310 mm |
| Surface planer table length | 1409 mm |
| Surface plane’s shaving thickness | 3 mm |
| No. of bevels | 3-phase |
| Enclosure class IP | IP54 |
| Weight | 175 kg |
Article information
| Base unit | ST |
|---|---|
| Contents (Per base unit) | 1 ST á 1 ST |
| Minimum order quantity | 1 ST |
| GTIN/EAN | 262340102 |
- Articles
- Specifications
- Compare Articles
- Documents
- Similar Products
GTIN
Discontinued articles
| Art.nr | Description | Pack | Contents | Alternative |
|---|---|---|---|---|
| 262340102 | PLAN/THICKNESSER BPT310X | ST | 1 |
