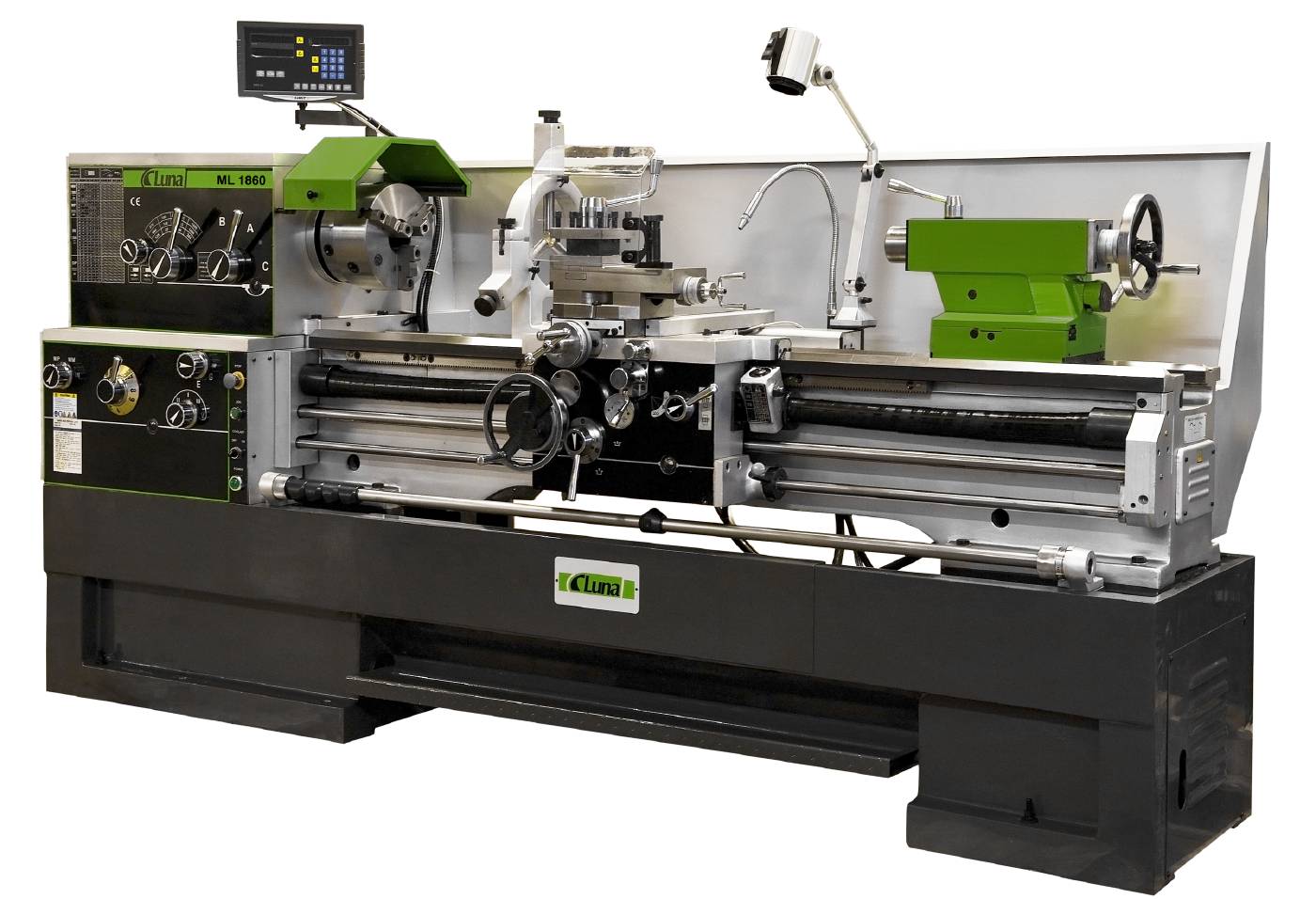

Metal lathes Luna ML 1640, ML 1660
QUICK TOL REST, MAGN BR, DIGITALDescription
A robust and stable steady centre lathe suitable for repair and maintenance work as well as training purposes. The machine is constructed on an induction hardened and ground bed plate with high strength cast iron gap for high stability, foot-operated spindle brake, safety connector against overloading the feed.
Supplied complete with 1-speed motor with electric brake, chuck protection with micro switch, halogen work lighting, rear splash guard, digital measuring equipment, complete coolant equipment, 3-jaw chuck Ø 250 mm (fitted), 4-jaw chuck Ø 320 mm, faceplate, collet, fixed centres, square steel attachment, die stock, and tool set.
ML 1660 is equipped with longitudinal quick feed.
Attributes
| ETIM class code | EC004008 |
| Manufacturer´s description | ML 1640 |
| Centre distance | 1000 mm |
| Centre height | 205 mm |
| Gap width | 200 mm |
| Motor voltage | 400 V |
| Tailstock spindle diameter | 75 mm |
| Spindle movement in tailstock | 130 mm |
| Spindle passage | 80 mm |
| Lather diameter in gap width | 660 mm |
| Lathe diameter over bed | 410 mm |
| Lather diameter over cross slide | 250 mm |
| Compound rest movement | 100 mm |
| Cross-slide movement | 230 mm |
| No. of bevels | 3-phase |
| Tailstock taper | 4 |
| Headstock taper | 7 |
| Coolant pump | 0.04 k W |
| Model | Floor |
| Spindle speed | 25-1800;;;30-2160 r/min |
| Weight | 2450 kg |
Article information
| Base unit | ST |
|---|---|
| Contents (Per base unit) | 1 ST á 1 ST |
| Minimum order quantity | 1 ST |
| GTIN/EAN | 207580580 |
- Articles
- Specifications
- Compare Articles
- Documents
- Equipment Packages
- Spare Parts
- Similar Products
GTIN
Discontinued articles
| Art.nr | Description | Pack | Contents | Alternative |
|---|---|---|---|---|
| 207580580 | QUICK TOL REST, MAGN BR, DIGITAL | ST | 1 | |
| 207580606 | LATHE ML 1660 | ST | 1 | |
| 207585506 | LATHE ML 1660 230-3 | ST | 1 | |
| 207585522 | LATHE ML 1640 230-3 | ST | 1 |
