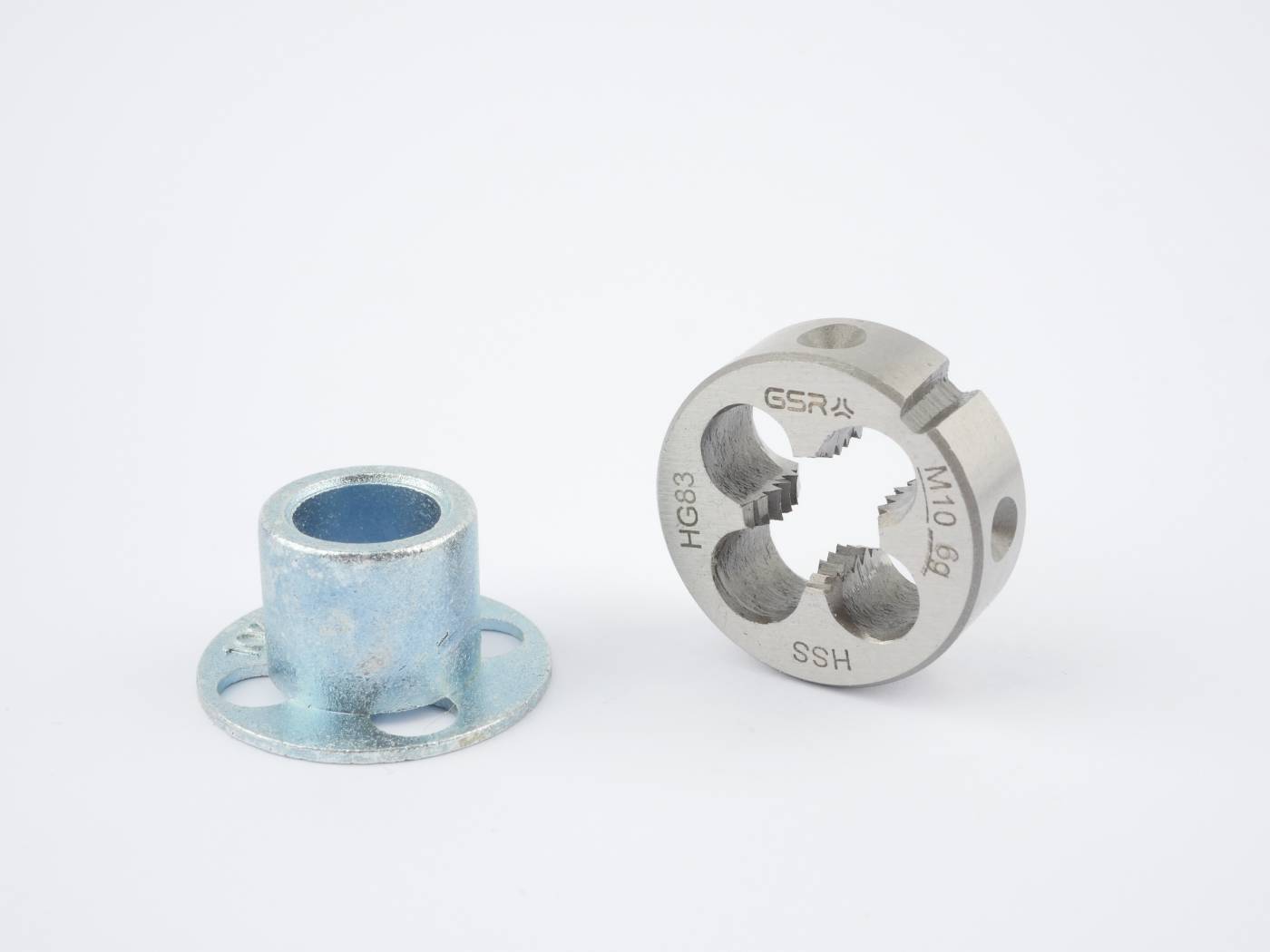

Die guide, M-coarse

With the help of the GSR die guides, it is easy to cut a vertical external thread. The advantages of these guides are manifold:

• The thread is cut perpendicularly – regardless of whether the bolt has been straightened or not
• The thread flanks are cut cleanly and neatly
• By using the GSR die guides you always ensure a straight cutting direction running to the axis. This means that bolts and dies can no longer be damaged by slanting.
• The GSR die guides can be used for both left-hand and right-hand threads

The GSR die guides are suitable for:

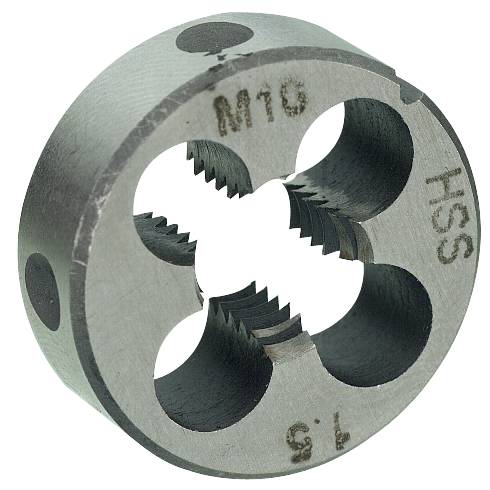

• Dies DIN 2236 = EN 22569 with die holder DIN 225 = EN 22568
• Dies according to factory standard 25×9 mm
